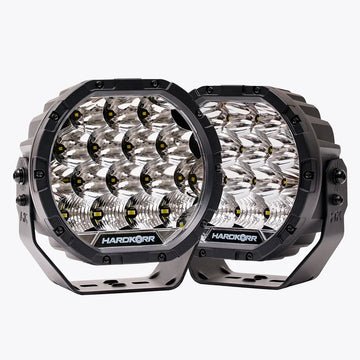

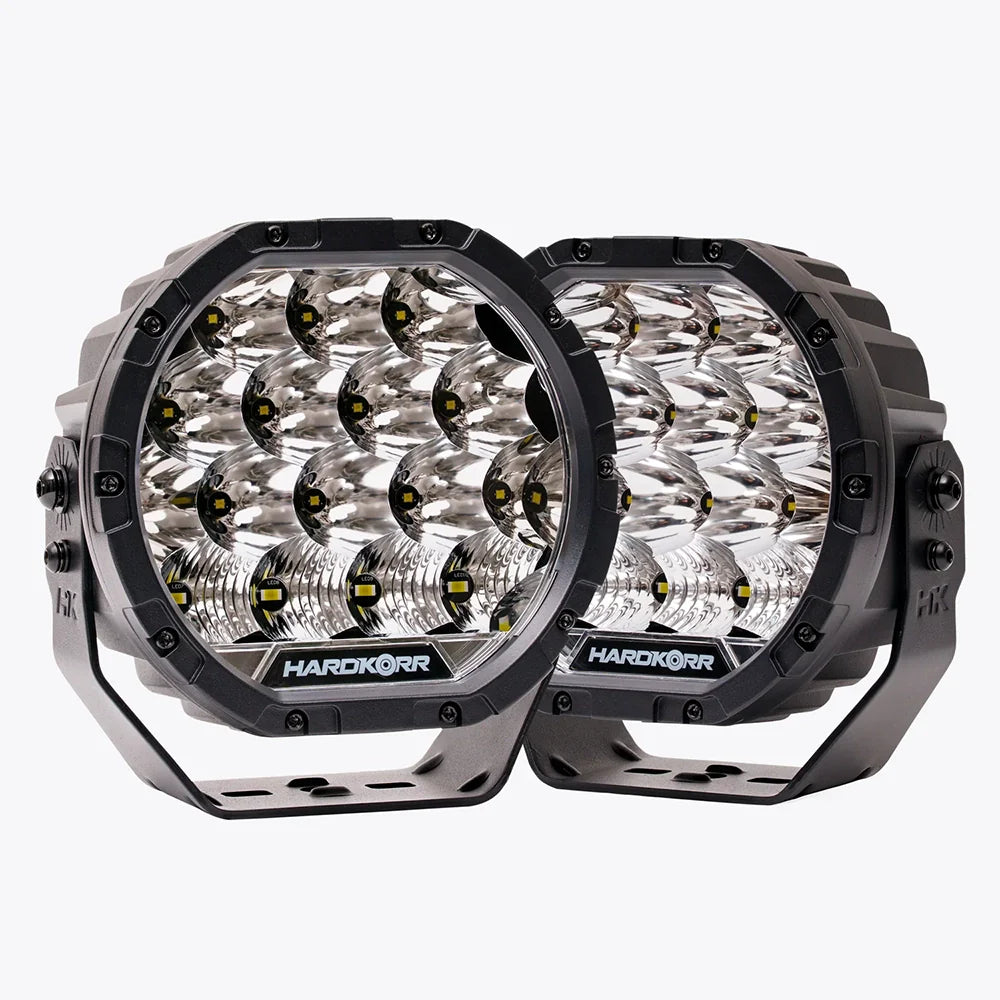

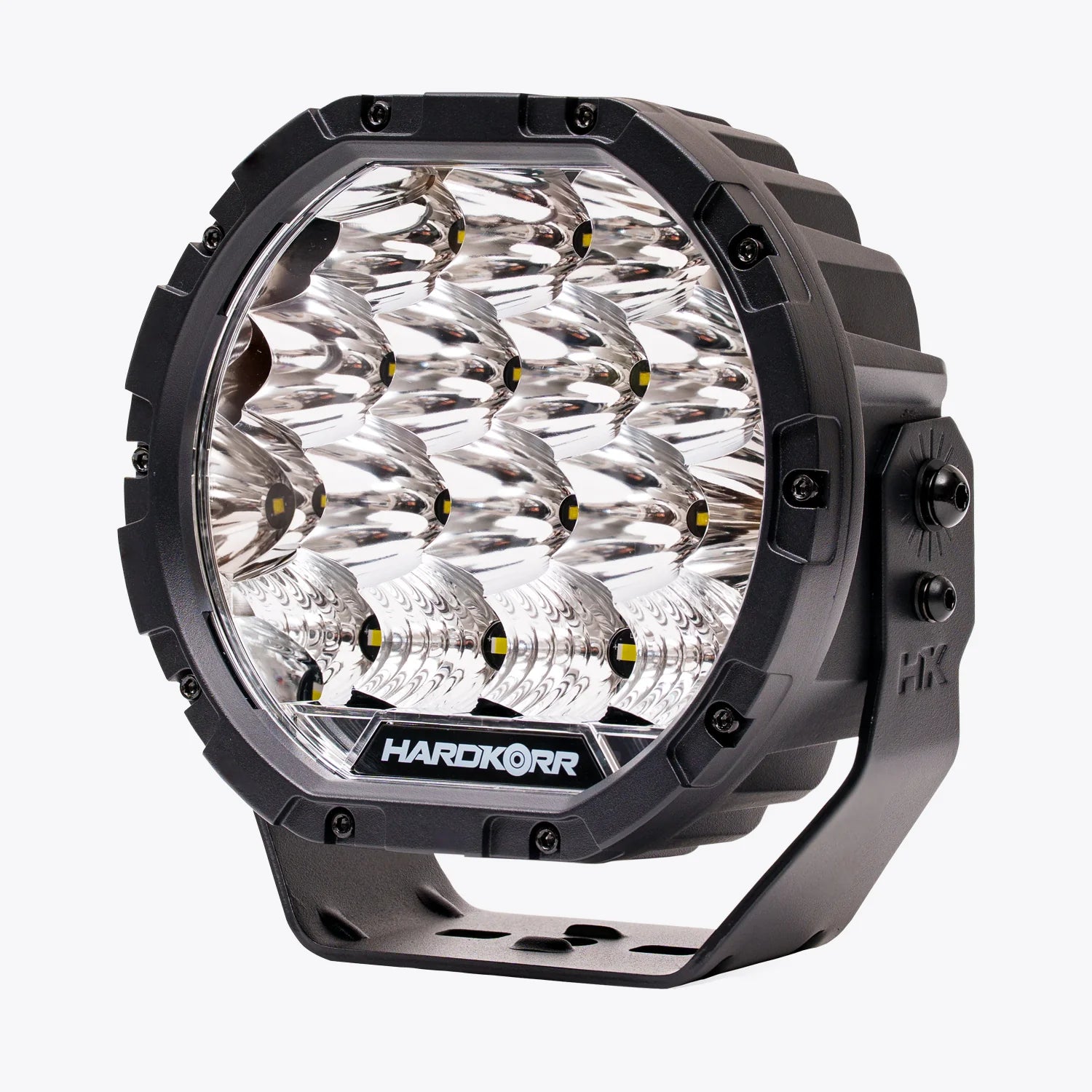

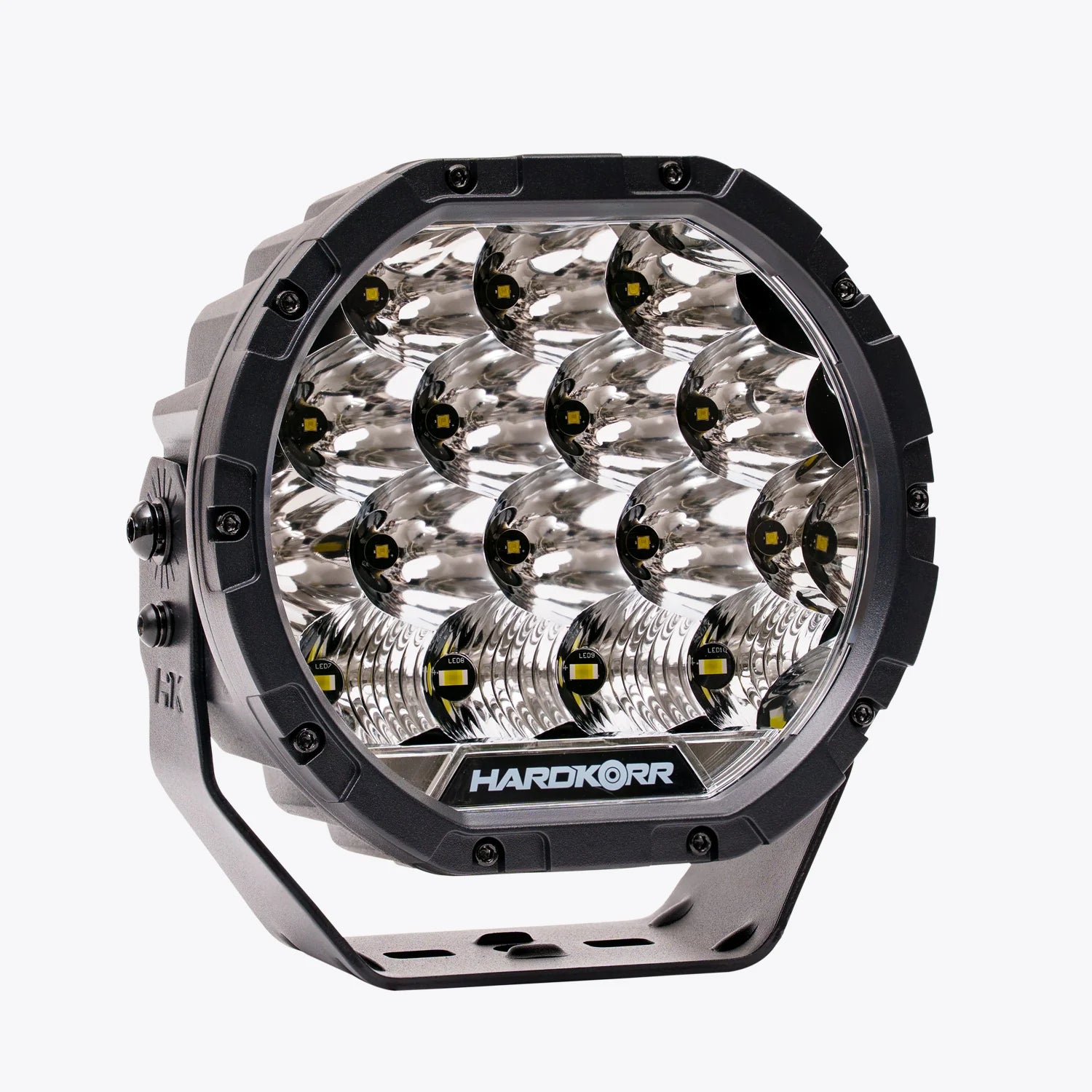

XD Series
7" LED Driving Lights
Pouring light 1200m down the road, our XD Series puts the light where you need it most – the beam angle flooding out comfortably over both sides of the road with its 75° beam angle.
The XD Series Driving Lights deliver an ideal balance of performance, build quality, and value, making them a smart upgrade for drivers who want serious visibility without paying premium-brand prices just for the logo.
With an impressive beam distance of up to 1200 metres, the XD Series projects usable light far down the road, giving you more time to react to hazards at highway speeds or when driving in remote areas. The carefully engineered 75° beam angle doesn’t just throw light forward, it floods the road edges as well, improving peripheral visibility and helping you spot wildlife, obstacles, and terrain changes before they become a problem.
Designed for real-world driving conditions, the XD Series focuses on putting light exactly where it’s needed, reducing wasted glare while maintaining a wide, comfortable spread that’s easy on the eyes during long night drives. Whether you’re touring, commuting on unlit roads, or heading off-grid, these lights give you the confidence to keep moving after the sun goes down.\
Reliable, powerful, and built to perform when it matters most, the XD Series proves that great driving lights don’t have to come with a premium price tag.
There’s really only one question left.
Where to next?
Specifications
Housing material: Powder-coated die-cast aluminium

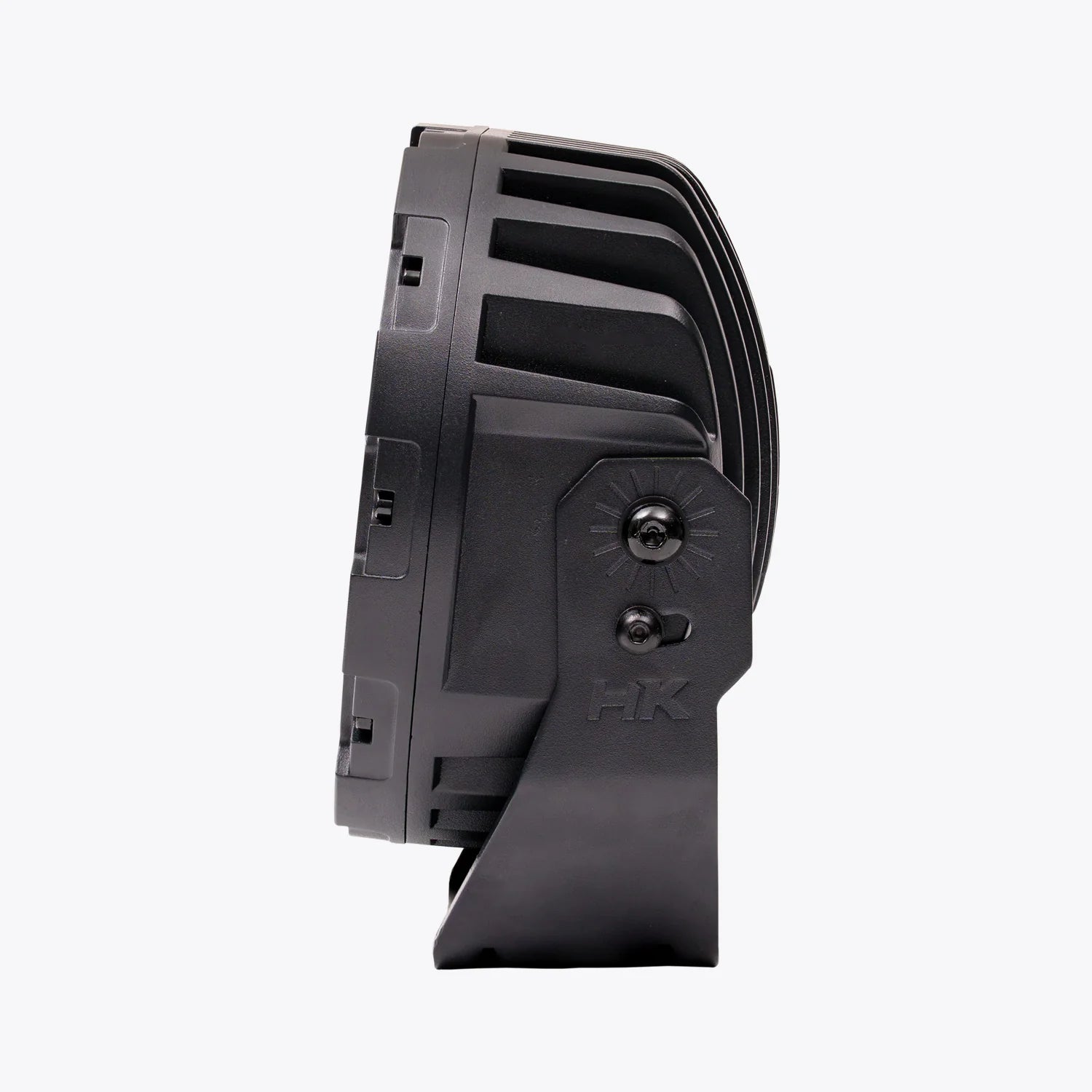

Bracket material: Powder-coated 3.4mm iron bracket
Lens material: UV-coated polycarbonate
Size: 178 (L) x 184 (H) x 95 (D) mm
Weight: 1.8kg (each)
Raw lumens: 20,400lm (pair)
Effective lumens: 18,112lm (pair)
1-lux rating: 1,200m
Beam angle: 75°
Peak intensity (candela): 680,000cd
CRI: 70
Colour temperature: 5,700K

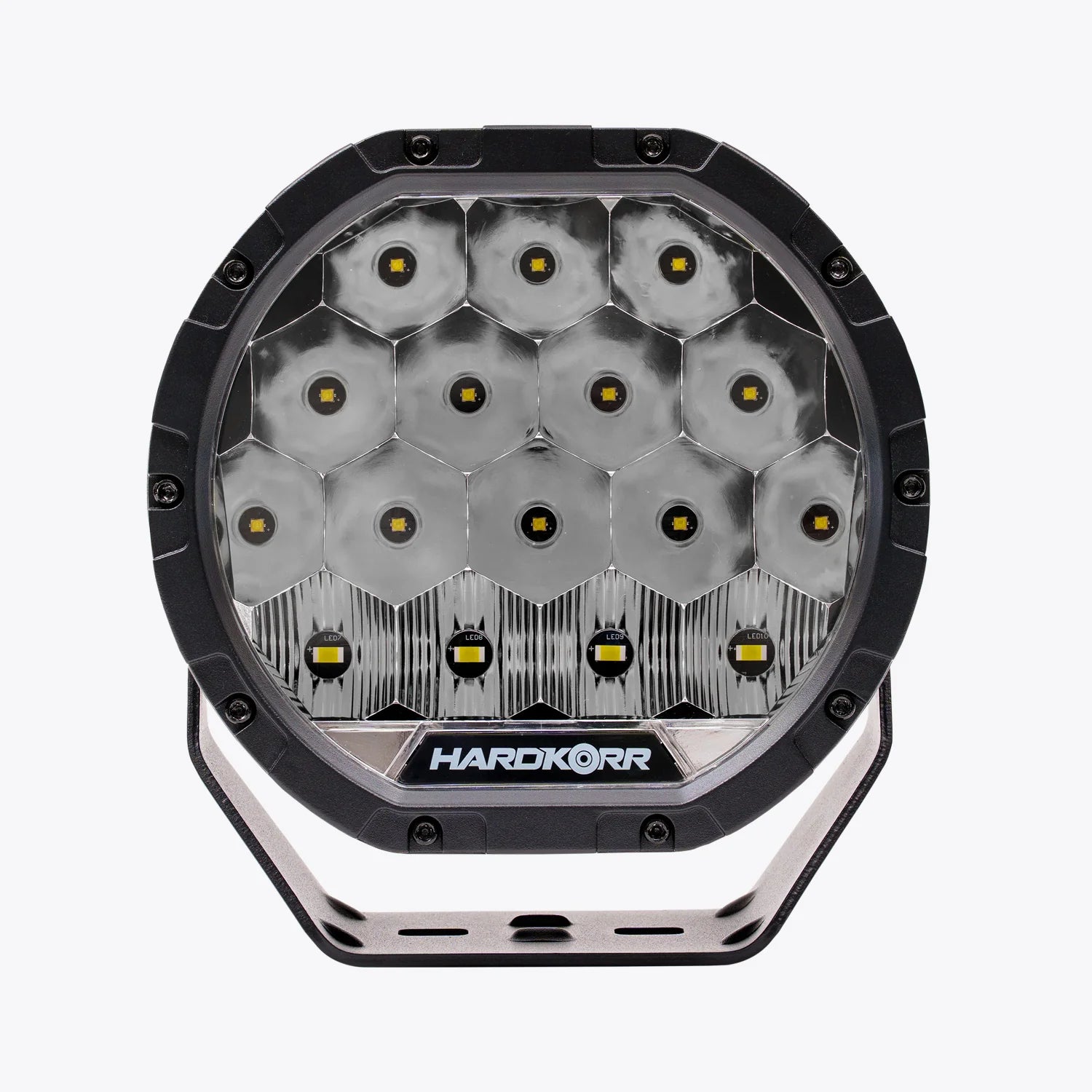

LED chips: 12x OSRAM, 4x LUMINUS
Operating voltage: 10–30V DC
Current draw: 8.62A @ 12V / 4.31A @ 24V
Wattage: 103W
Operating temperature: -40°C – 80°C
Ingress protection: IP68 / 9K

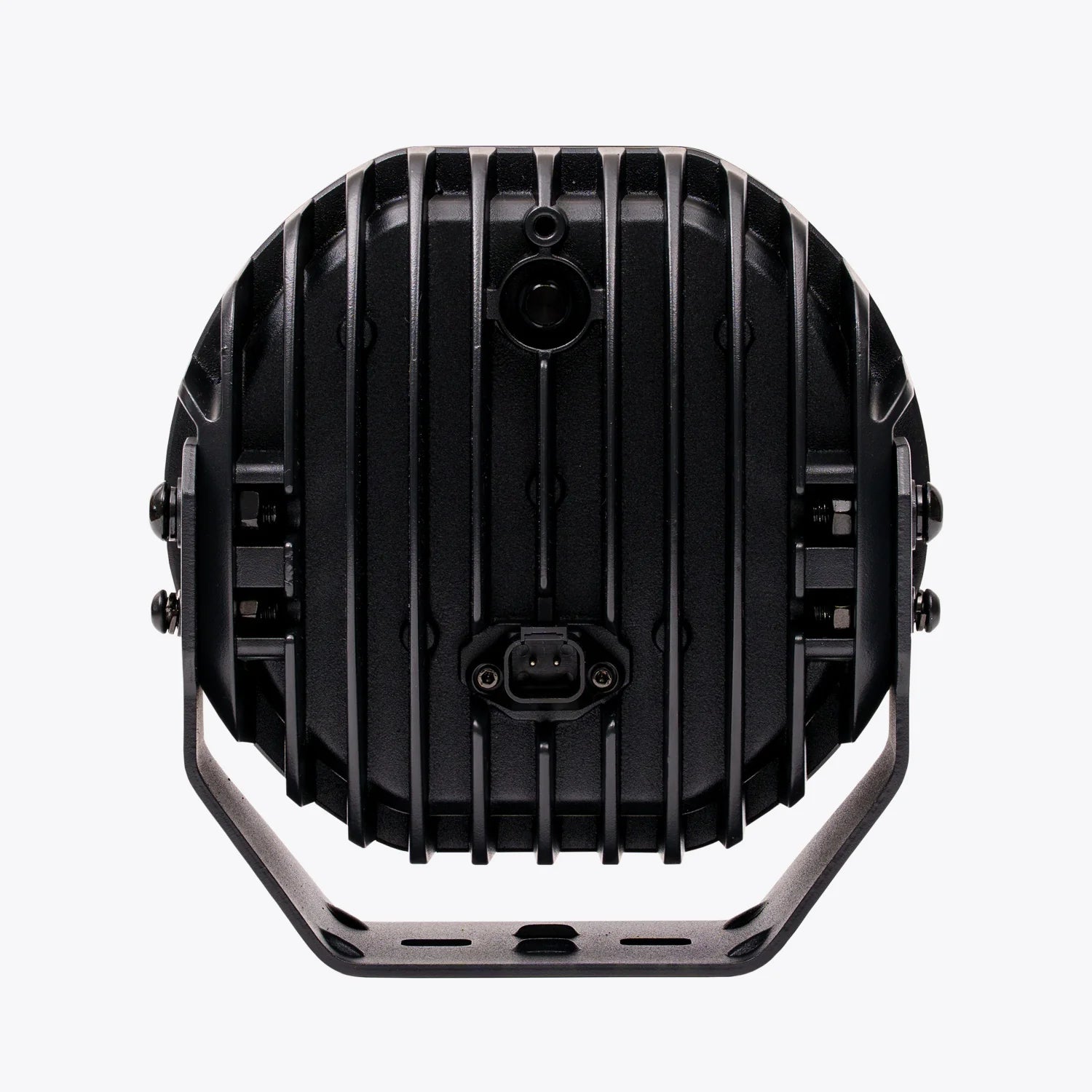

Connector: 2-Pin Deutsch DT Connector
Certifications: EMC-CISPR 15, IP68/69K, CE-ROHS
Items Included
2x XD-Series Driving Lights

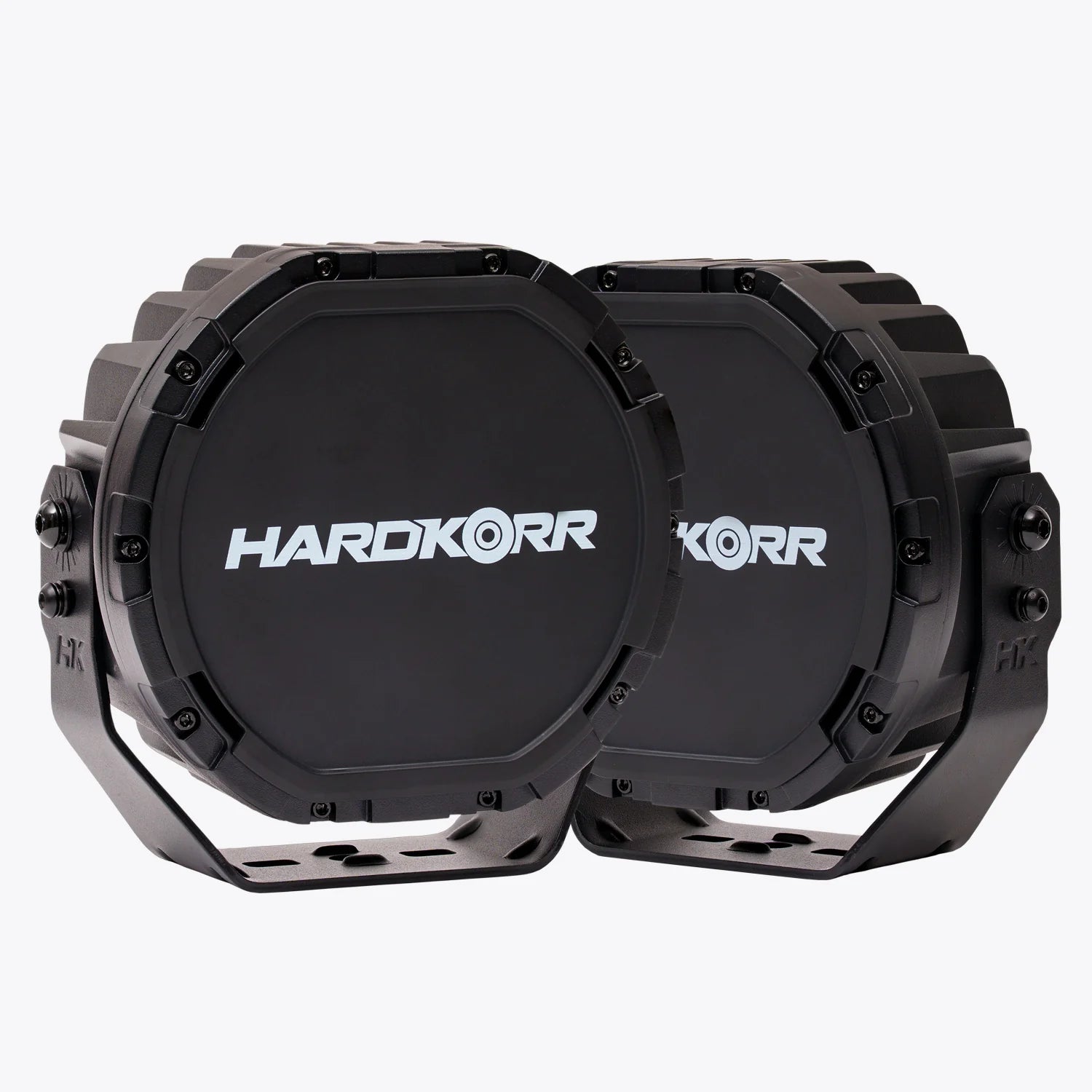

2x Black lens covers
6x Stainless steel bolts
6x Washers
6x Nuts
2x Rubber mounting pads
Documentation Warranty card
NOTE: Wiring Harness sold separately
Note: this is a bulky item and is excluded from free delivery offers
