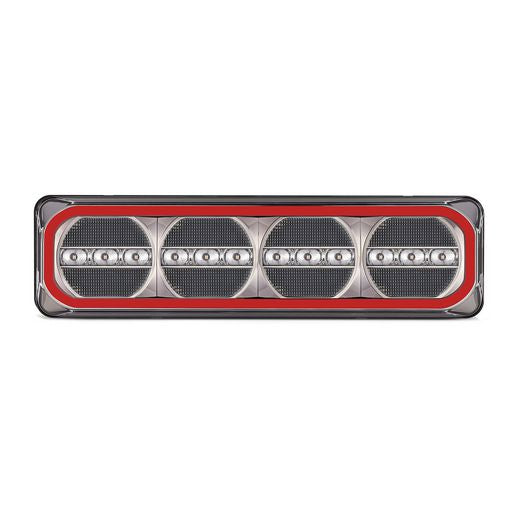

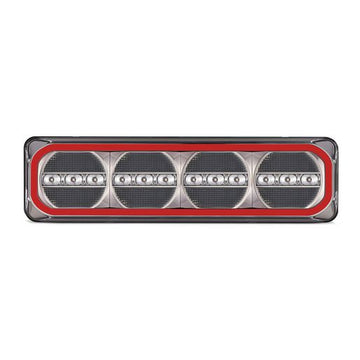

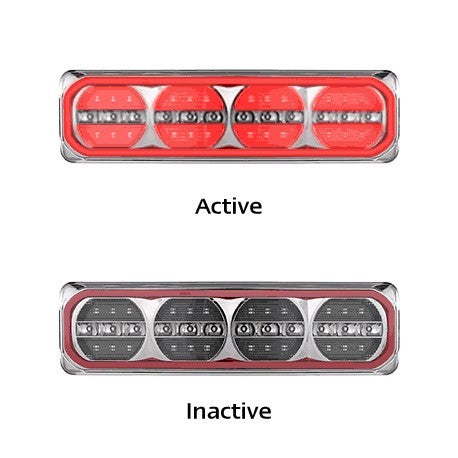

LED Autolamps 385ARWM-2 Twin Blister With Try Me Function-Stop/Tail

Features / Specifications

• Diffused Tail Function
• Sequential Indicator
• ECE Approved
• IP67 Rated
• Voltage Range 12-24 Volt
• 387mm x 105mm x 30.5mm
• 5 Year Warranty

Fitting Instructions

Separate the base plate from the lamp and horizontally mount it onto a flat surface using the screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in the fixing surface, then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions.

Diffused Tail Function

Sequential Indicator

ECE Approved

Please refer to our warranty terms and conditions
