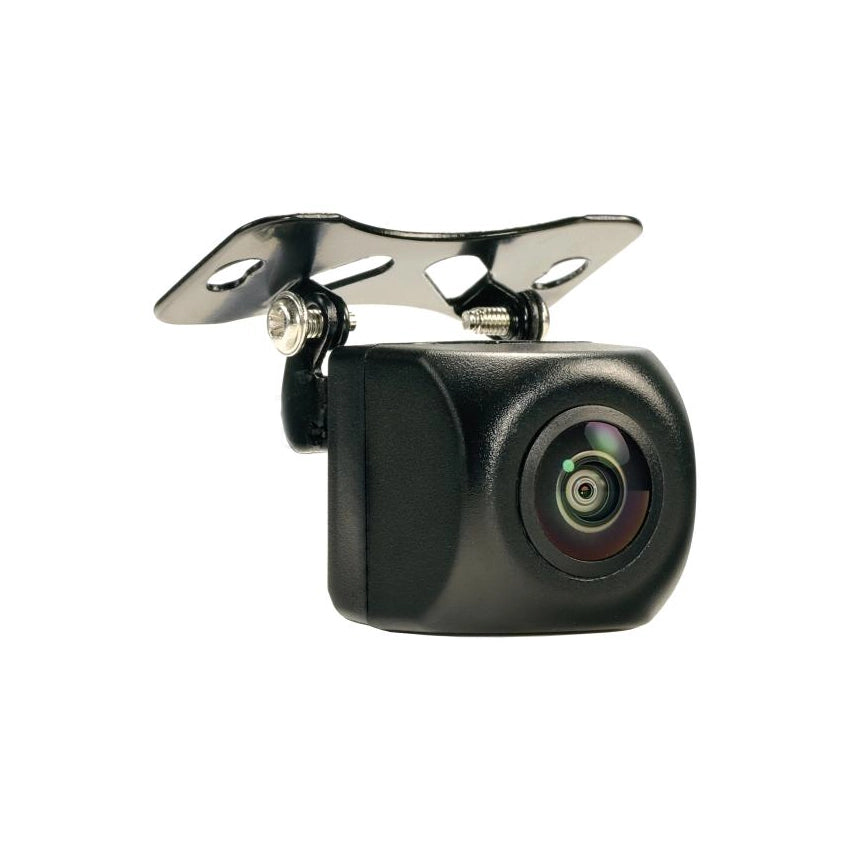

The Aerpro 720P HD Surface Mount Camera produces high definition picture quality. Suitable for use on AHD or TVI compatible multimedia receivers and displays, the camera can be used as a front, rear or reverse camera. It features a 170 degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to mount on a flat surface and has an adjustable bracket to enable angle adjustment.
Features:
- 720P High definition resolution produces crystal clear picture quality
- Suitable for AHD or TVI compatible multimedia receivers and displays only (loop setting adjustable)
- Suitable for use as a front, rear or reverse camera
- Universal surface mount design with adjustable bracket
- 170 Degree horizontal lens angle for a wide field of view
- Optional parking guidelines (loop setting adjustable)
- Optional mirror image (loop setting adjustable)
- Suitable for PAL systems only
- 12V DC Compatible, suitable for cars, utes and small commercial vehicles
- IP67 Weatherproof to withstand harsh operating environments
- Includes 6m RCA video lead with trigger cable
Inclusions:
- Surface Mount Camera
- 6M RCA Video Cable with Trigger
- Camera Harness
- Product Manual
Specs:
Mount Type: Surface Mount
Camera Type: Front, Rear Or Reverse
Monitor Compatibility: AHD or TVI
Resolution: 720P HD
Image Sensor:
Lens Angle 170 Degree
Loop Setting Adjustments:
AHD/TVI (Blue Loop): Default setting AHD, cut the loop for TVI
Parking Lines (Green Loop): Default setting PARKING LINES, cut the loop to remove PARKING LINES
Mirror Image (White Loop): Default setting MIRROR IMAGE, cut the loop for FORWARD FACING IMAGE
IP Rating: IP67
Voltage: 12V DC
Camera End Connection: 4 Pin Micro Din
Monitor End Connection: RCA
Video Cable Length: 6m
Reverse Trigger on Video Cable: Yes
Wired or Wireless: Wired
