XD Series 30" Single Row LED Light Bar
The XD Series Lightbars deliver strong performance and solid build quality without the inflated price tag. Designed for real-world driving, they focus on putting usable light exactly where it matters most, helping you spot hazards earlier and drive with confidence after dark.
With a 1 lux beam reaching out to 900 metres, distance is never in question. Whether you’re covering long stretches of unlit highway or pushing deeper into remote tracks, the XD Series provides clear forward visibility without sacrificing control.
A wide 96° beam angle ensures the light spreads comfortably across the full width of the road and beyond the shoulders, improving peripheral vision and reducing the risk of unexpected obstacles, wildlife, or terrain changes catching you off guard.
Operating at a balanced 5500K colour temperature, the light output is clean and natural, offering excellent contrast without harsh glare. This reduces eye strain on long night drives while maintaining clarity in dusty, wet, or variable conditions.
Built to handle Australian terrain, the XD Series Lightbars are engineered for durability, with high vibration and shock resistance to withstand corrugations, impacts, and continuous off-road punishment. From touring rigs to work vehicles, these lightbars are made to perform when conditions are far from ideal.
Performance. Coverage. Reliability.
There’s really only one question left. Where to next?
Specifications:
| Size |
816 (W) x 71 (H) x 63 (D) mm |
| Weight (light only) |
2.69 kg |
| Lumens (effective) |
14,083 lm |
| Lux rating |
1 lux @ 900 m |
| Colour temperature |
5,500 K |
| Max. beam angle |
96° |
| Operating voltage |
10–32 VDC |
| Current |
21.42A (12V) / 10.46A (24V) |
| IP rating |
IP68 / 9K |
| Certifications |
CE, RoHS, R10 |

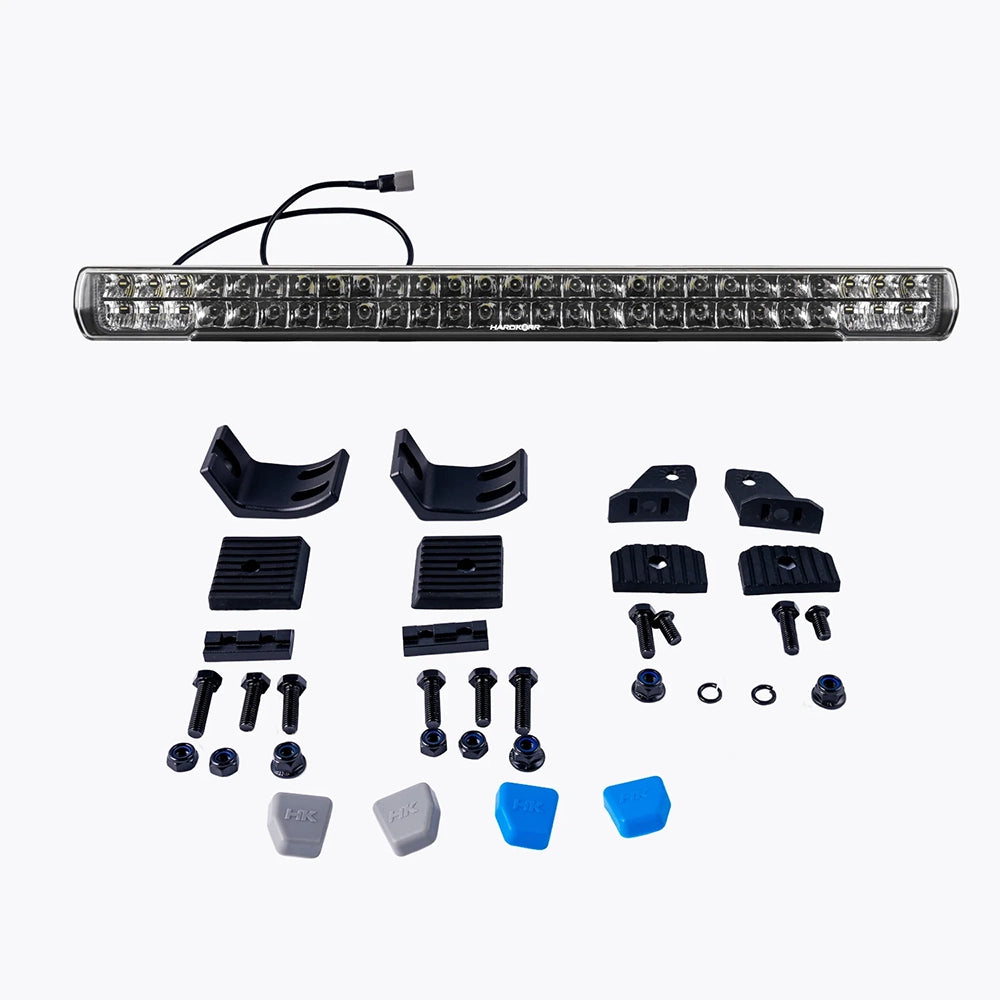

Package Contents:
- XD Series 30" Lightbar
- Side / rear legs + hardware
- Rear legs + hardware
- 4-pin harness wiring tail

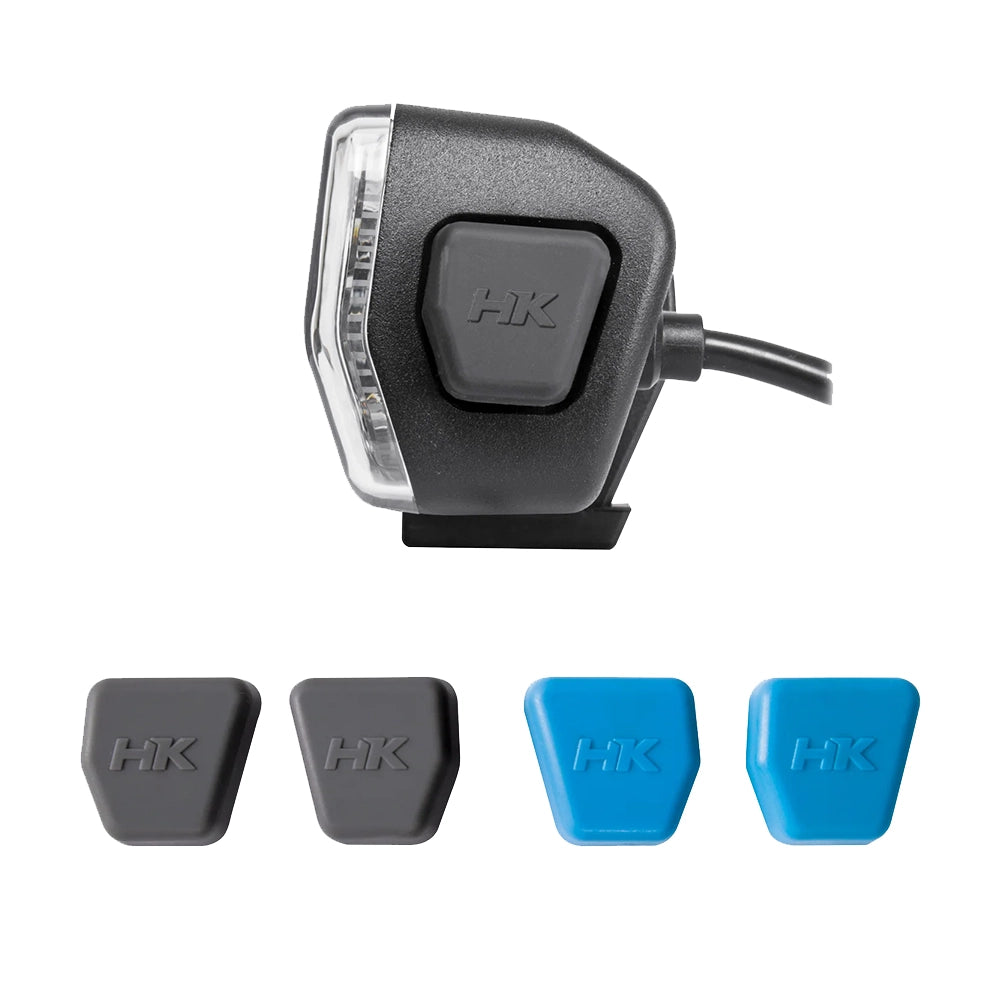

- Blue / grey end caps (pair)
Note: wiring harness sold separately.
