HardKorr XD Series 20" Double Row LED Light Bar - LBXD-20S

HardKorr XD Series 20" Double Row LED Light Bar - LBXD-20S

Regular price $159.00
Sale price $159.00 Regular price $0.00
Unit price
PRODUCT DESCRIPTION
FEATURES
WARRANTY INFORMATION

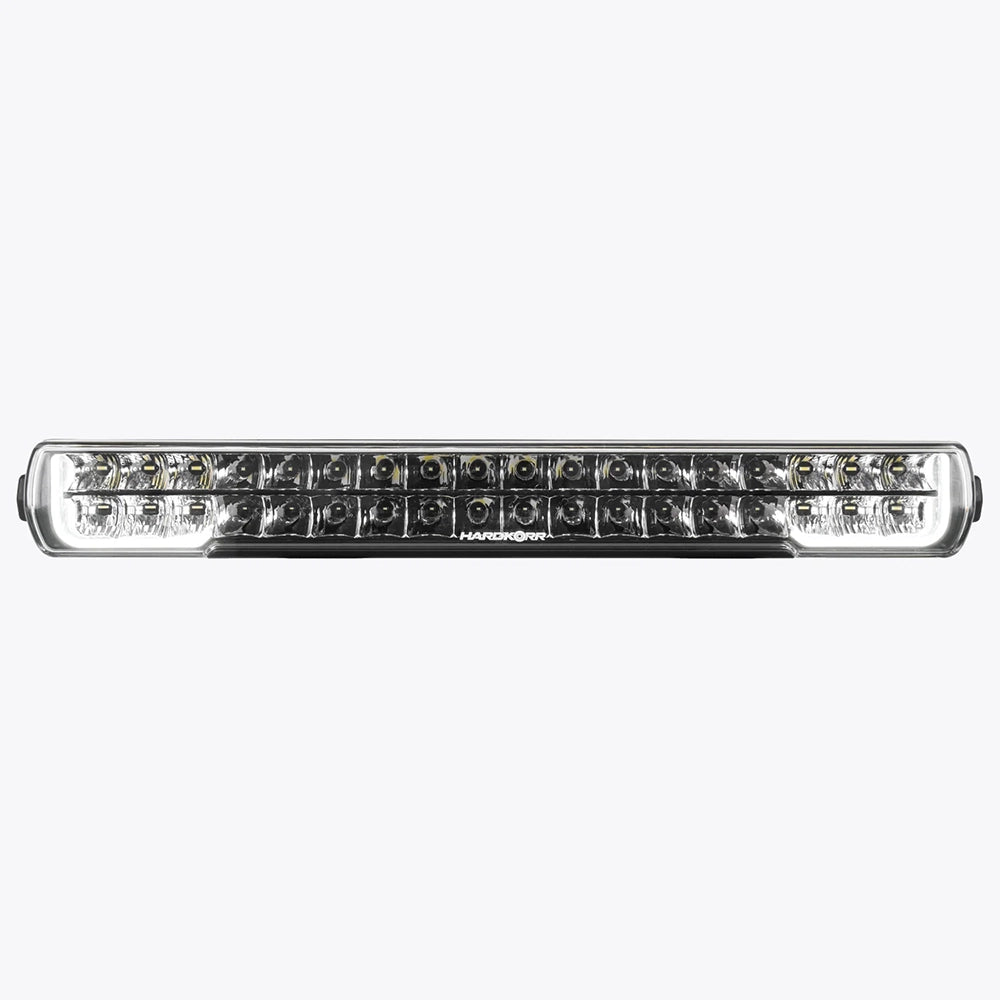

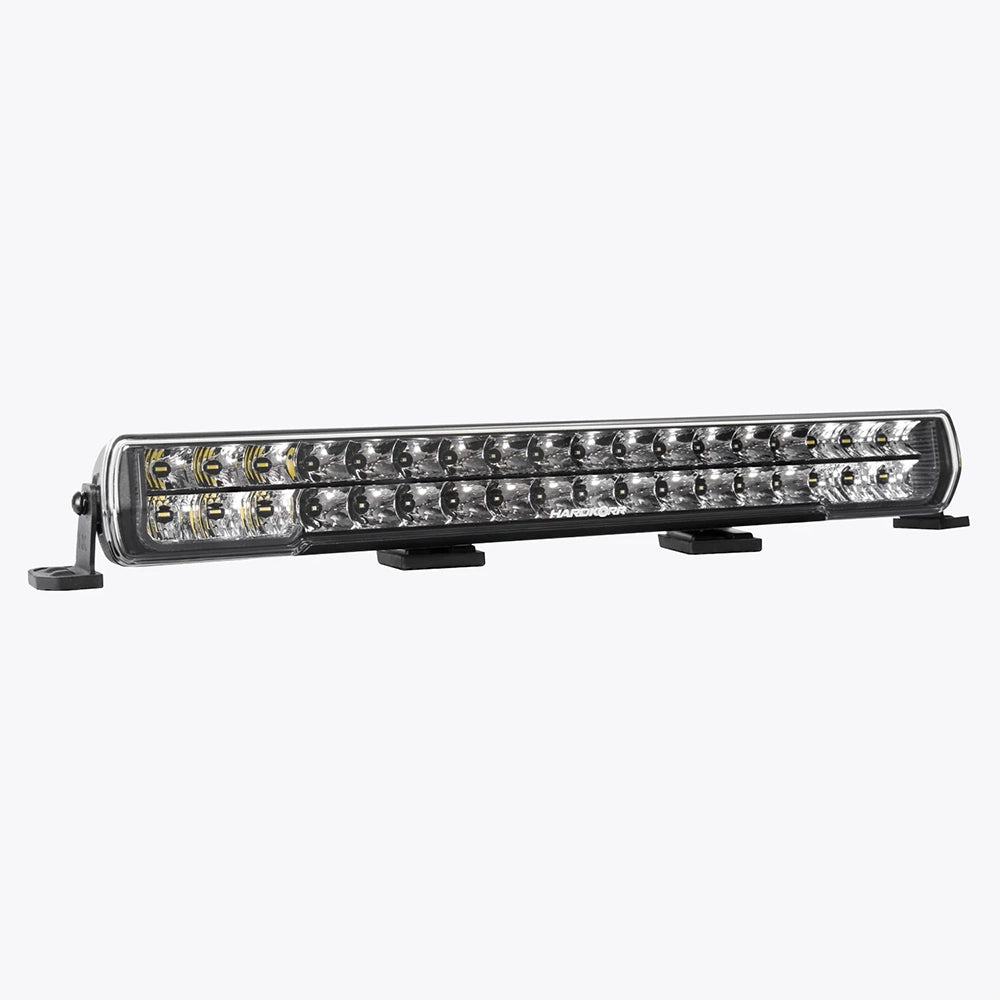

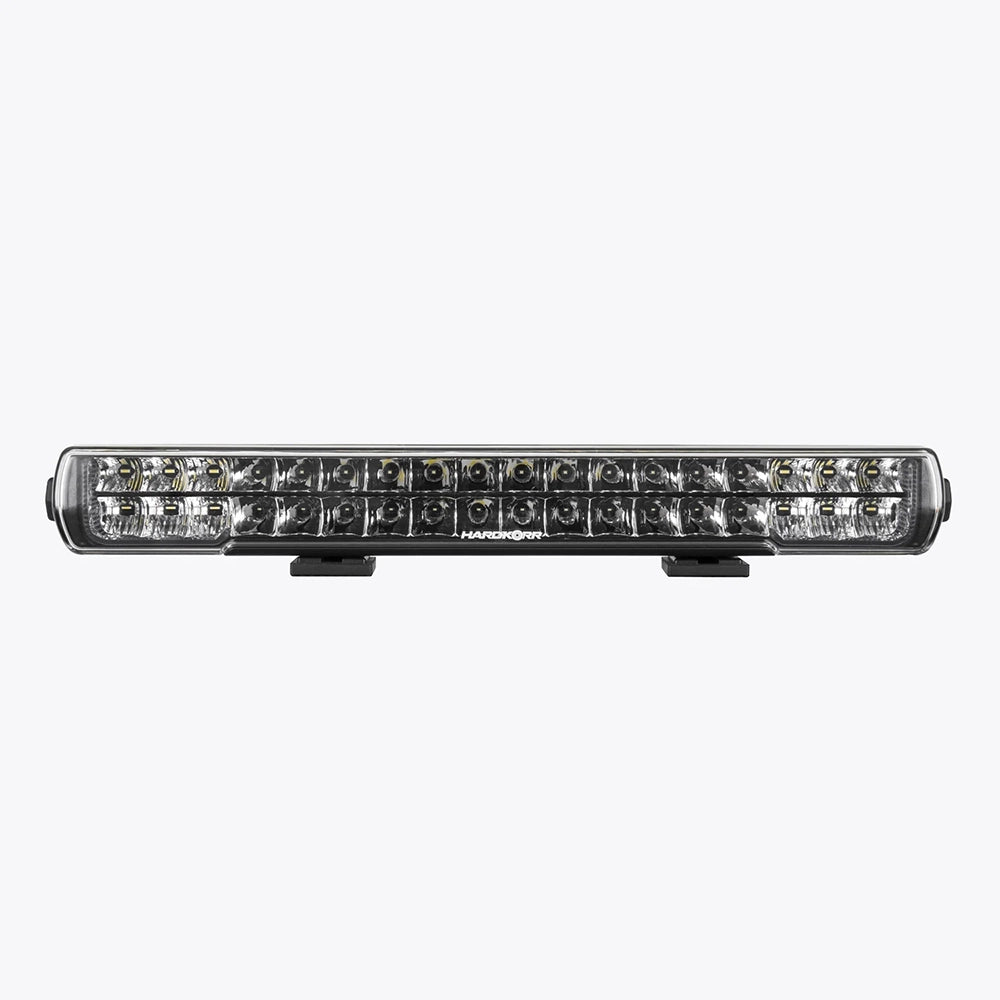

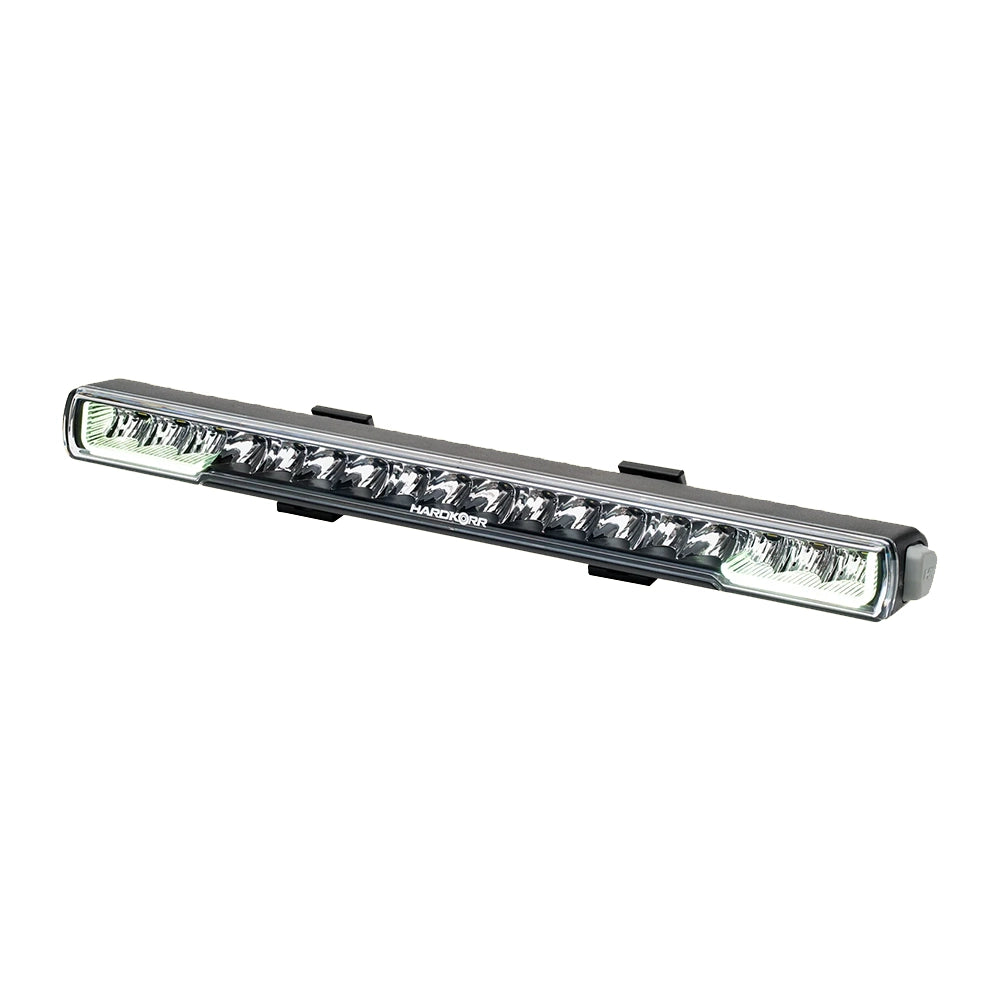

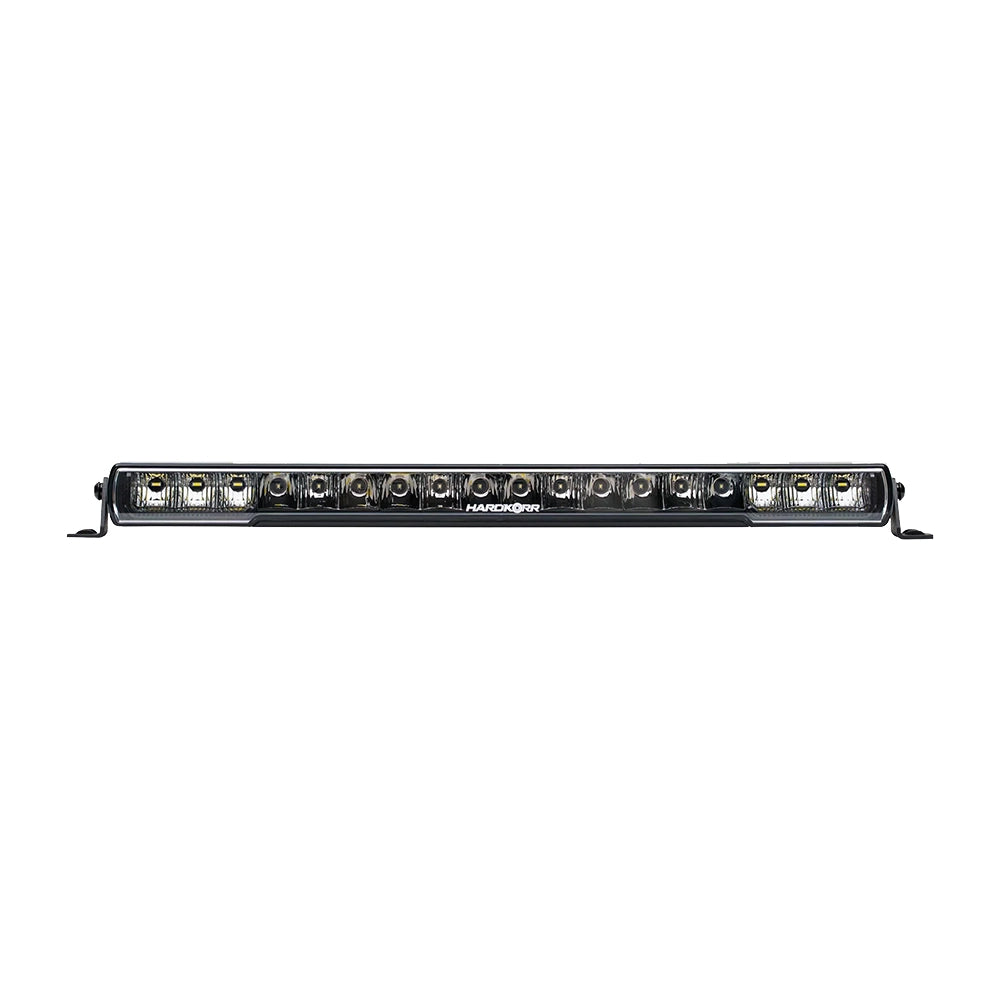

XD Series 20" Double Row LED Light Bar

It’s no longer a question of hazard avoidance, putting light where you need it most. It’s never a question of distance, shining 672m down the road. It’s certainly not a question of durability, with peak vibration and shock test ratings.
There’s really only one question. Where to next?

Style meets performance with integrated daytime running light

Featuring an integrated daytime running light for improved daytime visibility, while adding a sharp, modern finish to your vehicle.

The XD Series Lightbars deliver strong performance and solid build quality without the inflated price tag. Designed for real-world driving, they focus on putting usable light exactly where it matters most, helping you spot hazards earlier and drive with confidence after dark.

With a 1 lux beam reaching out to 672 metres, distance is never in question. Whether you’re covering long stretches of unlit highway or pushing deeper into remote tracks, the XD Series provides clear forward visibility without sacrificing control.

A wide 120° beam angle ensures the light spreads comfortably across the full width of the road and beyond the shoulders, improving peripheral vision and reducing the risk of unexpected obstacles, wildlife, or terrain changes catching you off guard.

Operating at a balanced 5500K colour temperature, the light output is clean and natural, offering excellent contrast without harsh glare. This reduces eye strain on long night drives while maintaining clarity in dusty, wet, or variable conditions.

Built to handle Australian terrain, the XD Series Lightbars are engineered for durability, with high vibration and shock resistance to withstand corrugations, impacts, and continuous off-road punishment. From touring rigs to work vehicles, these lightbars are made to perform when conditions are far from ideal.
Performance. Coverage. Reliability.
There’s really only one question left.
Where to next?

Specifications:

Housing material Powder-coated die-cast aluminium
Bracket material Powder-coated die-cast aluminium
Lens material UV-coated polycarbonate
Size 560 (L) x 71 (H) x 63 (D) mm
Weight 2.0kg
Raw lumens 27,600lm
Effective lumens 12,595lm
1-lux rating 672m
Beam angle 118°
Peak intensity (candela) 410,000cd
Colour temperature 5,500K
LED chips 24x 2016 + 12x 1860
Operating voltage 10–30V DC
Current draw 15.82A @ 12V / 7.74A @ 24V
DRL draw 0.48A @ 12V / 0.27A @ 24V
Operating temperature -30°C – 65°C
Ingress protection IP68 / 9K

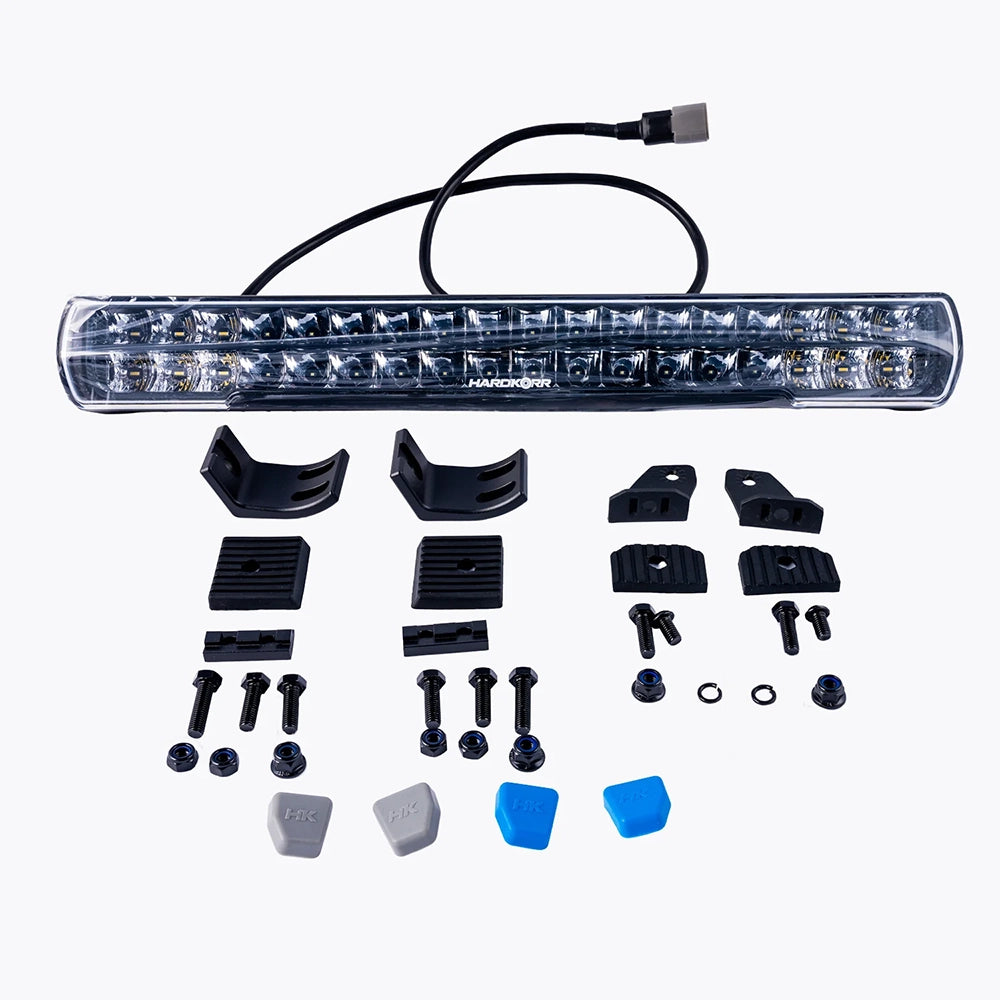

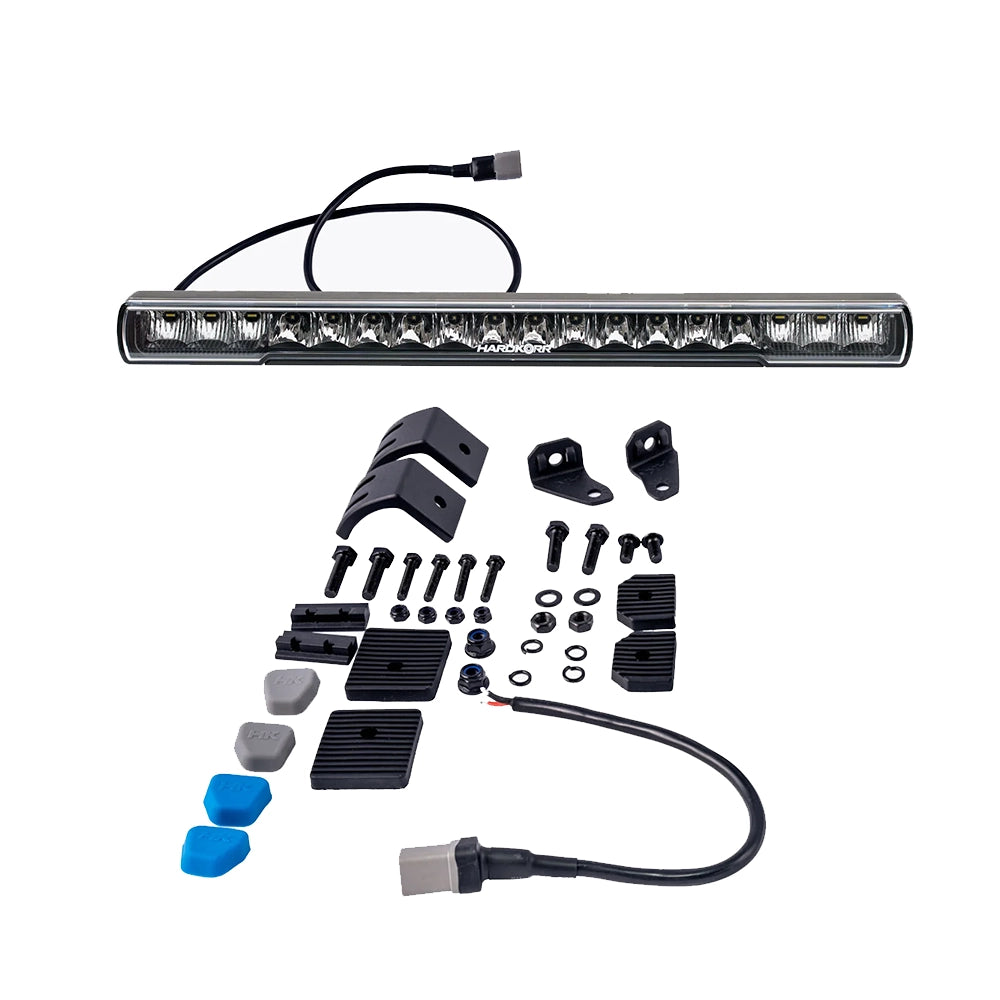

Package Contents:

  • XD Series 20" Lightbar
  • Side / rear legs + hardware
  • Rear legs + hardware
  • 4-pin harness wiring tail

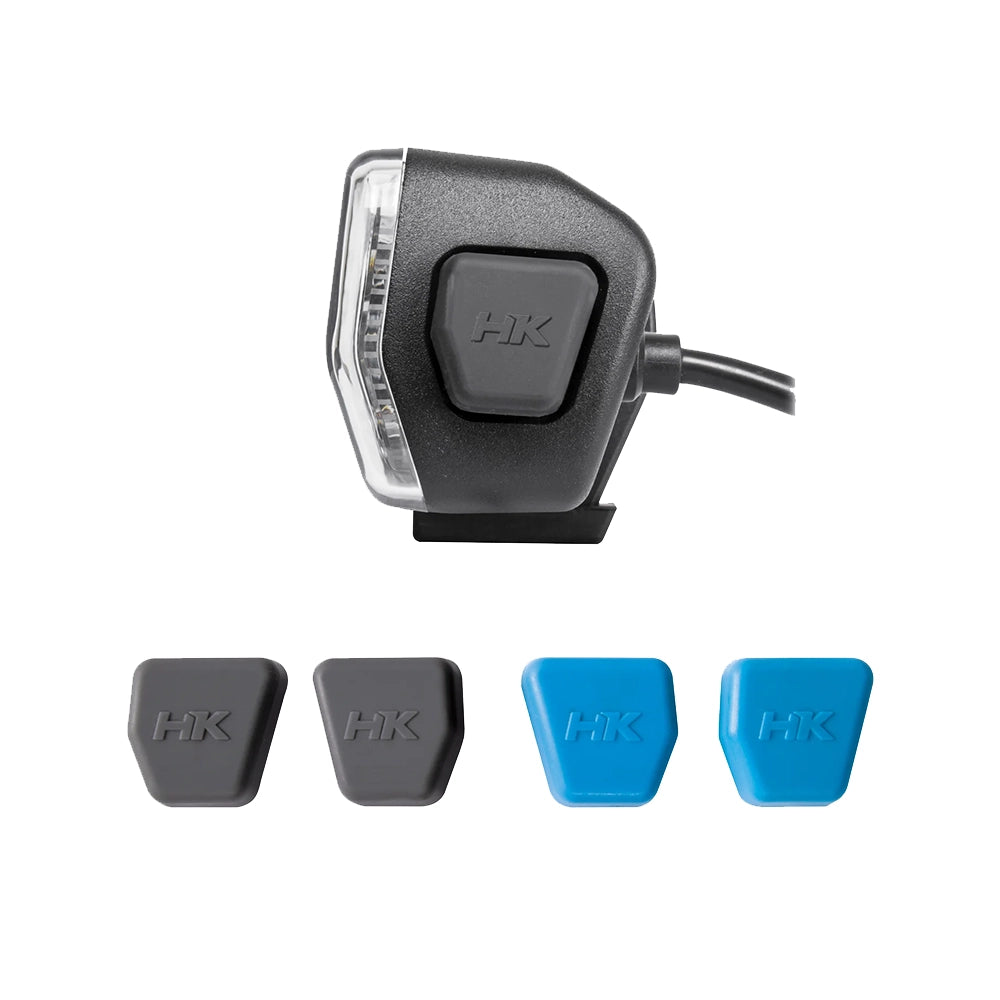

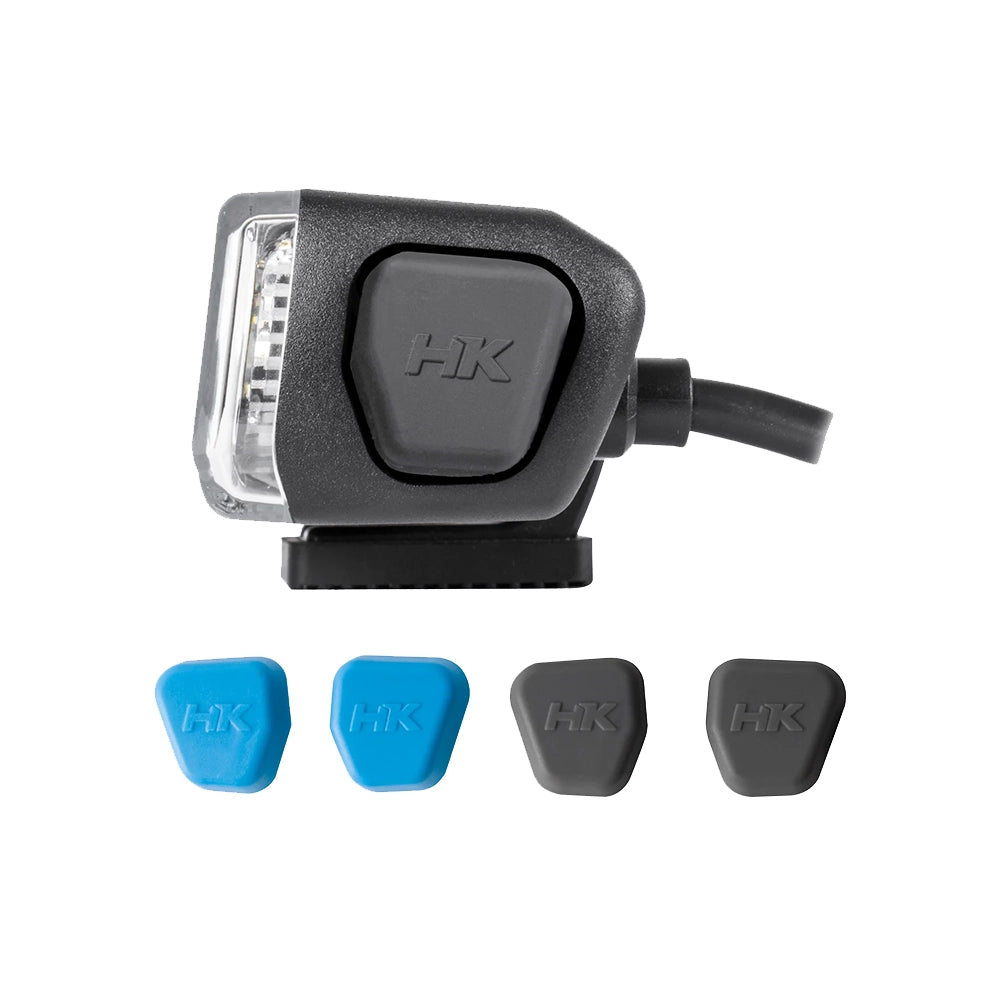

  • Blue / grey end caps (pair)

Note: wiring harness sold separately.

1 Lux at 672m

120 degree beam angle

550K colour temperature

Integrated day time running light

IP68/9K rating

2 year replacement warranty for manufacturer's faults
