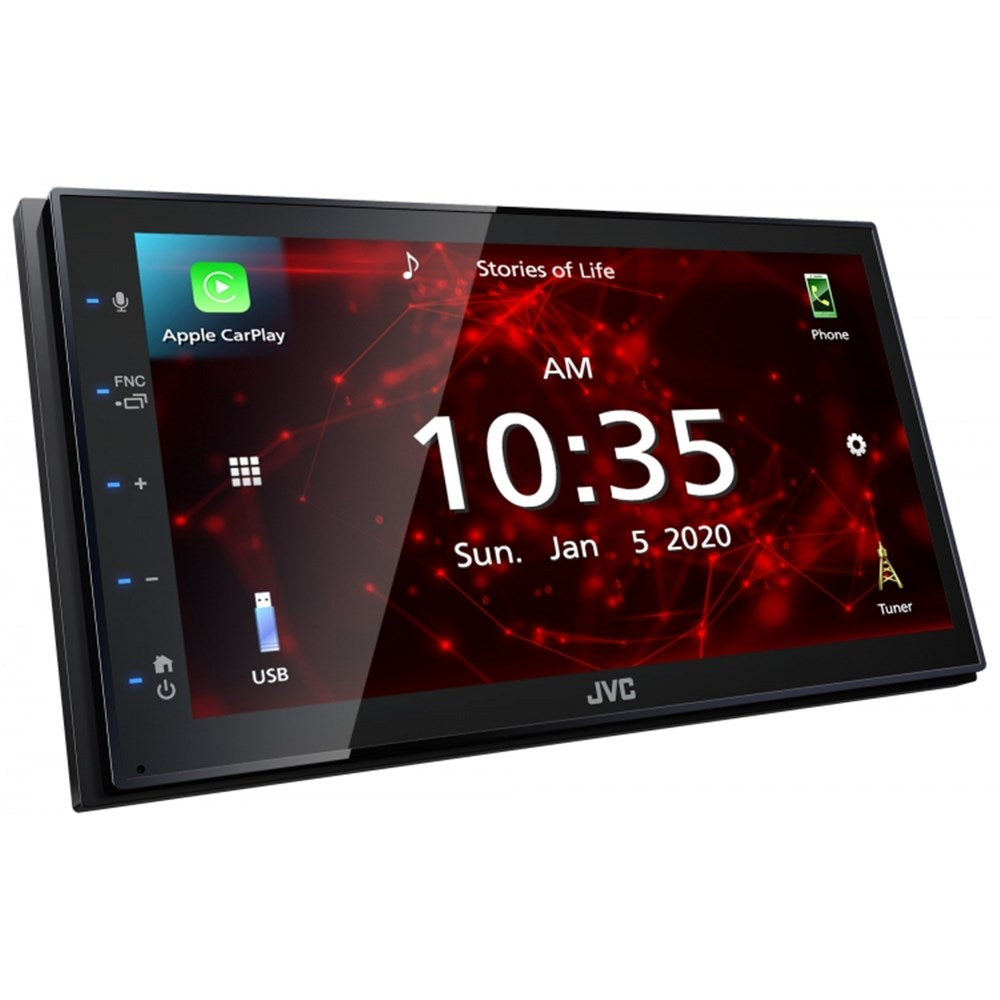

JVC 6.8" Capacitive LCD Double DIN Mechless Android Auto and Apple CarPlay Bluetooth AV Receiver Head Unit - KW-M560BT

The JVC KW-M560BT brings your smartphone onto the dash with a 6.8" capacitive touchscreen and built-in Apple CarPlay and Android Auto. Plug your phone in via USB to access maps, calls, messages and music from the screen or by voice, keeping your eyes on the road and your phone out of your hand.

Android users can also mirror their phone’s screen to the head unit over USB with the free Mirroring OA for JVC app. Built-in Bluetooth handles hands-free calling and audio streaming, with an included external microphone for clear calls and quick switching between two paired phones, which is handy when more than one person drives the car.

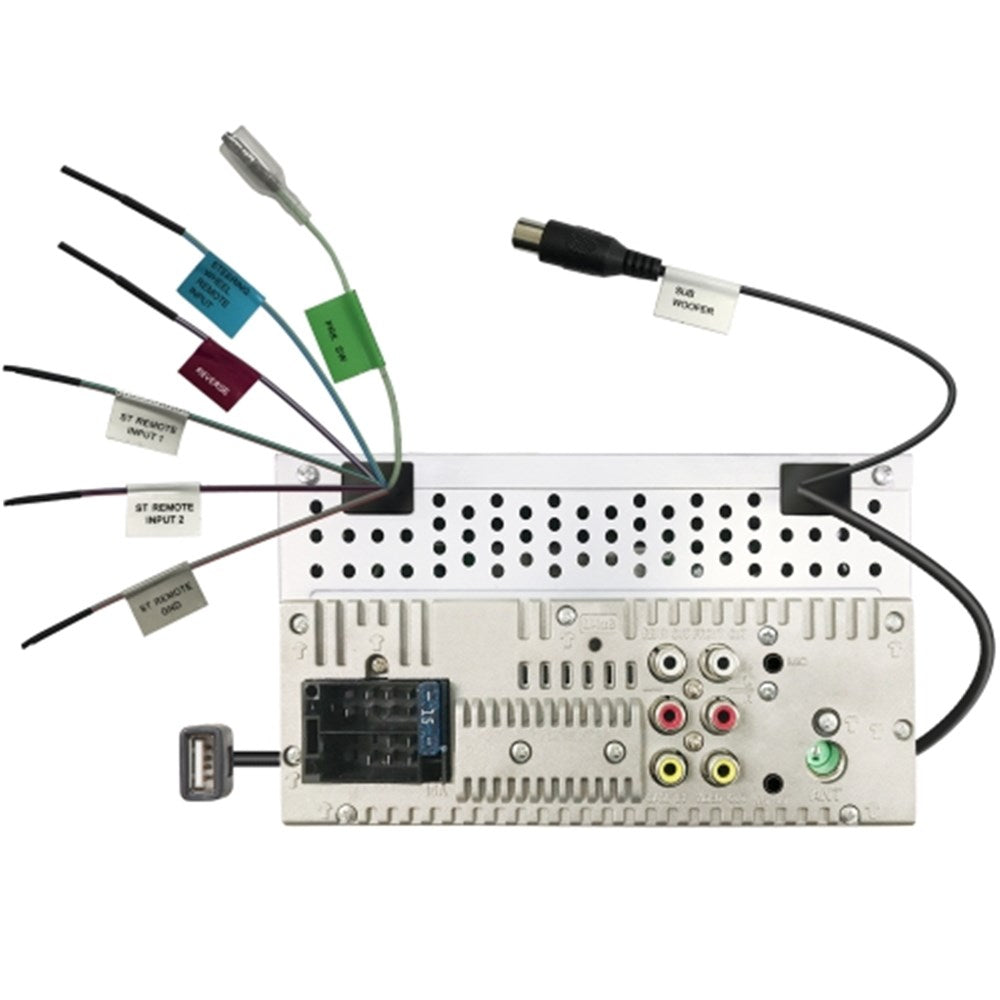

As a mechless unit with no disc player, the KW-M560BT uses a short chassis that’s only about 75mm deep, making it easier to fit into tight dashes. Behind it you’ll find a rear USB port with 1.5A charging, a dedicated reversing camera input and preamp outputs for adding amplifiers or a subwoofer later.

Sound can be fine-tuned with a 13-band graphic equaliser and digital time alignment, so you can shape the audio to suit your speakers and seating position. It also plays a wide range of audio and video files from USB, including FLAC, MP3 and MKV.

• Screen - 6.8" capacitive touchscreen
• Size - Double DIN, mechless (no CD/DVD)
• Smartphone - Apple CarPlay and Android Auto (wired via USB), Android USB mirroring
• Bluetooth - Hands-free calling and audio streaming (external mic included)
• USB - 1 x rear USB, 1.5A charging
• Power Output - 50W x 4 (max)
• Audio - 13-band EQ, digital time alignment
• Inputs - Reversing camera input
• Install Depth - Approx. 75m

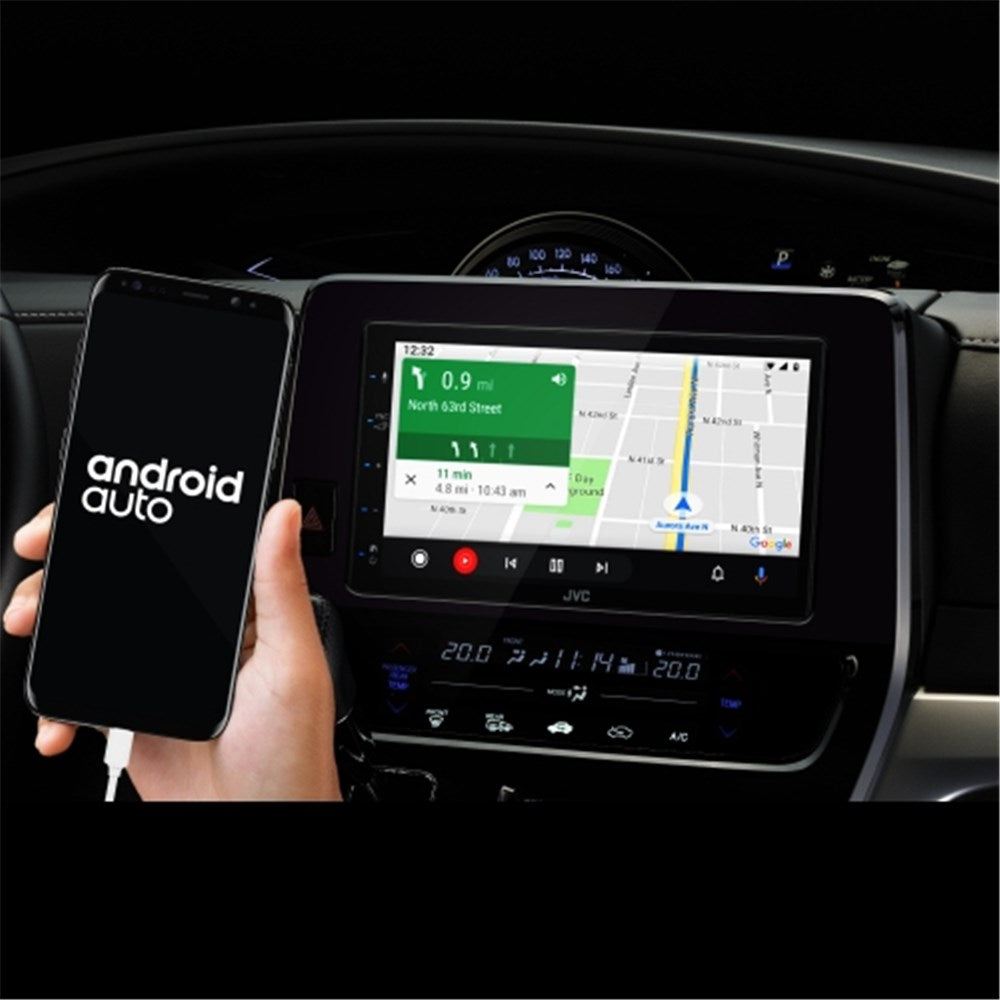

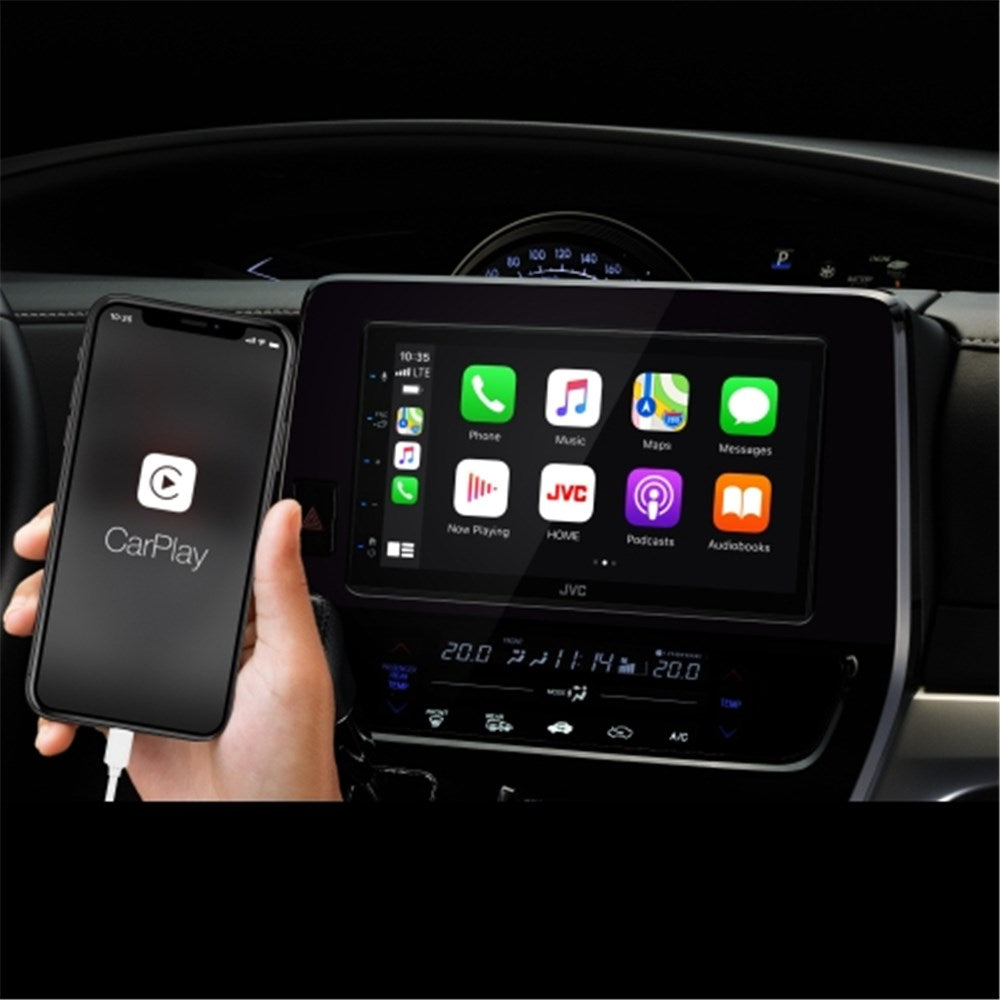

Supports Android Auto and Apple CarPlay via USB connection which also provides 1.5A charging output. Screen mirroring for supported Apps also available via JVC App for Android devices

6.8 inch capacitive touchscreen with gesture control. Multi-language menu. 50Wx4 maximum output

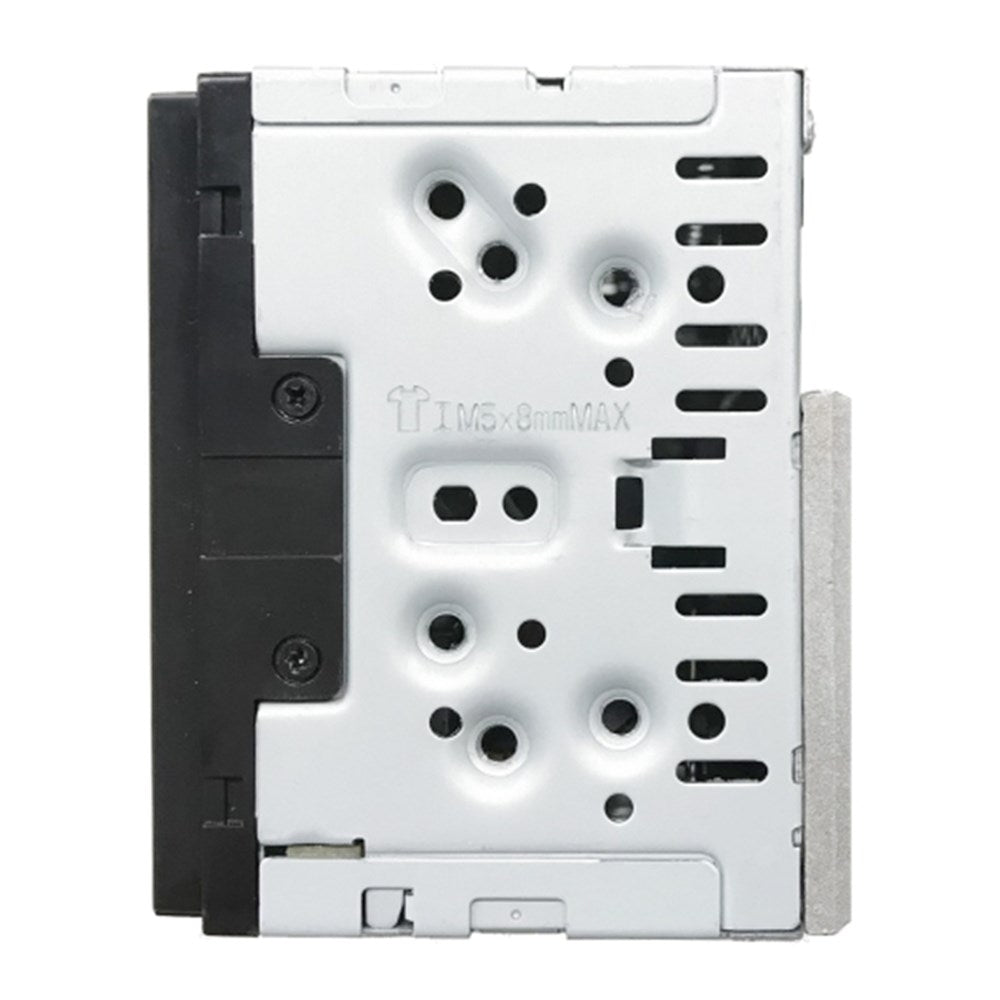

Short chassis thanks to mechless design which omits the disc player, enabling installation into more vehicles

Automatic Bluetooth pairing, steering wheel remote (RM-RK258 remote sold separately) and reverse camera ready (KV-CM30 camera sold separately)

Digital time alignment to synchronise the output of your speakers relative to the driver, 13 band on-screen graphic equaliser, and support for FLAC, AAC, WAV, MP3, WMA, H.264, AVI, MKV, WMV, MP4, MP1, MP2 formats

12 months
