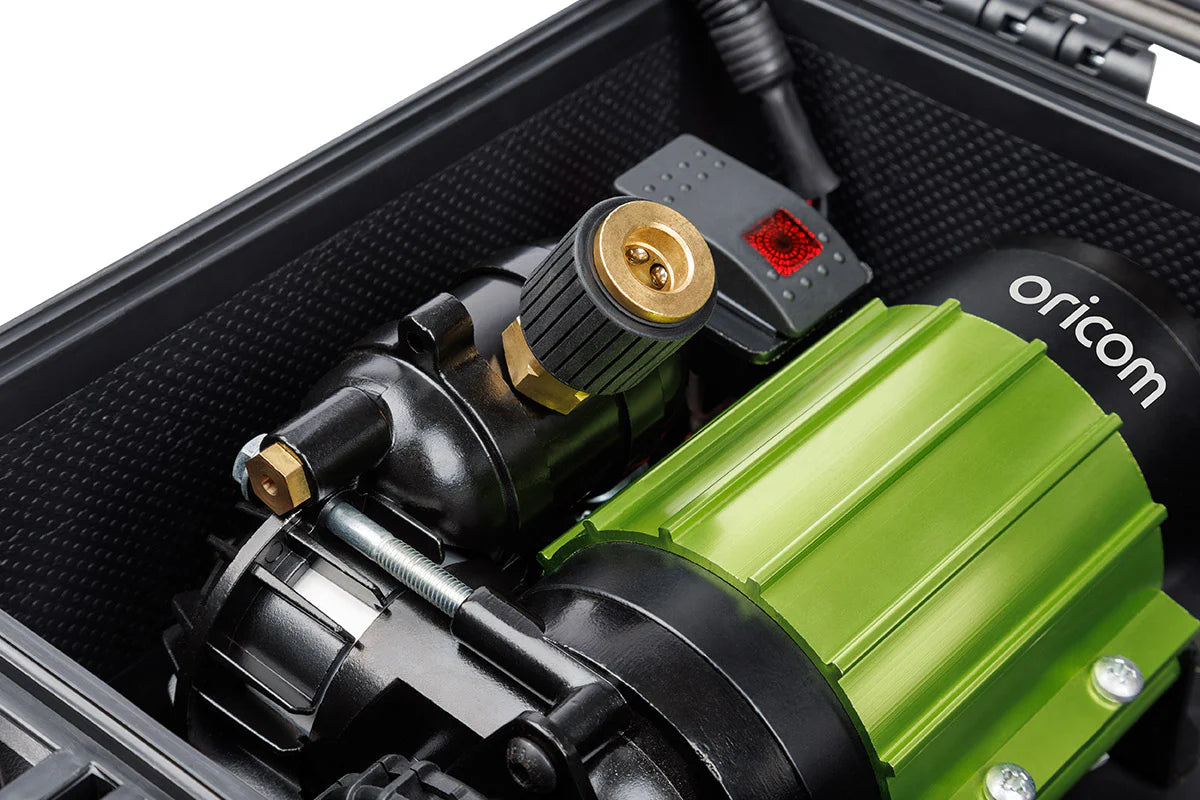

The Oricom AIR30 is a high-performance portable air compressor, delivering quick inflation with a 150PSI max pressure and 75L/min air flow rate, perfect for 4WDs and off-road vehicles. Featuring a durable air filter, automatic shut-off, and thermal protection, for safe, reliable inflation.
Key Features:
Max Pressure of 150 PSI – High pressure for inflating a variety of tyres with ease.
Air Flow Rate of 75L/min (0 PSI) – Fast air delivery for quick tyre inflation.
Pressure Cutoff Switch (90 PSI ON / 120 PSI OFF) – Automatically turns off once the set pressure is reached.
Thermal Protection (Shuts Off at 115°C) – Prevents overheating by automatically turning off the compressor.
6m Hose Length with NPT 1/4" Quick Connect – Provides ample reach for inflating multiple tyres or different vehicles.
2.5m Power Cable with Battery Clamps – Connects directly to your vehicle’s battery for reliable power.

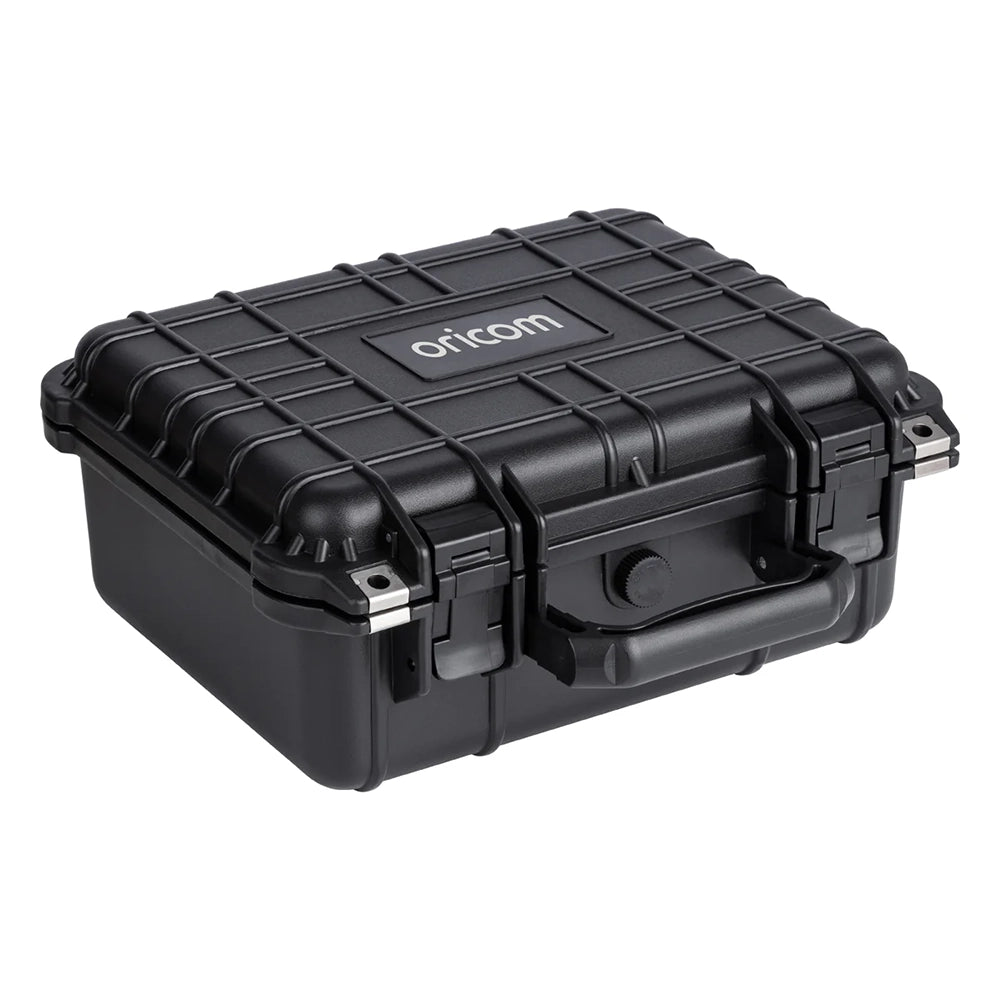

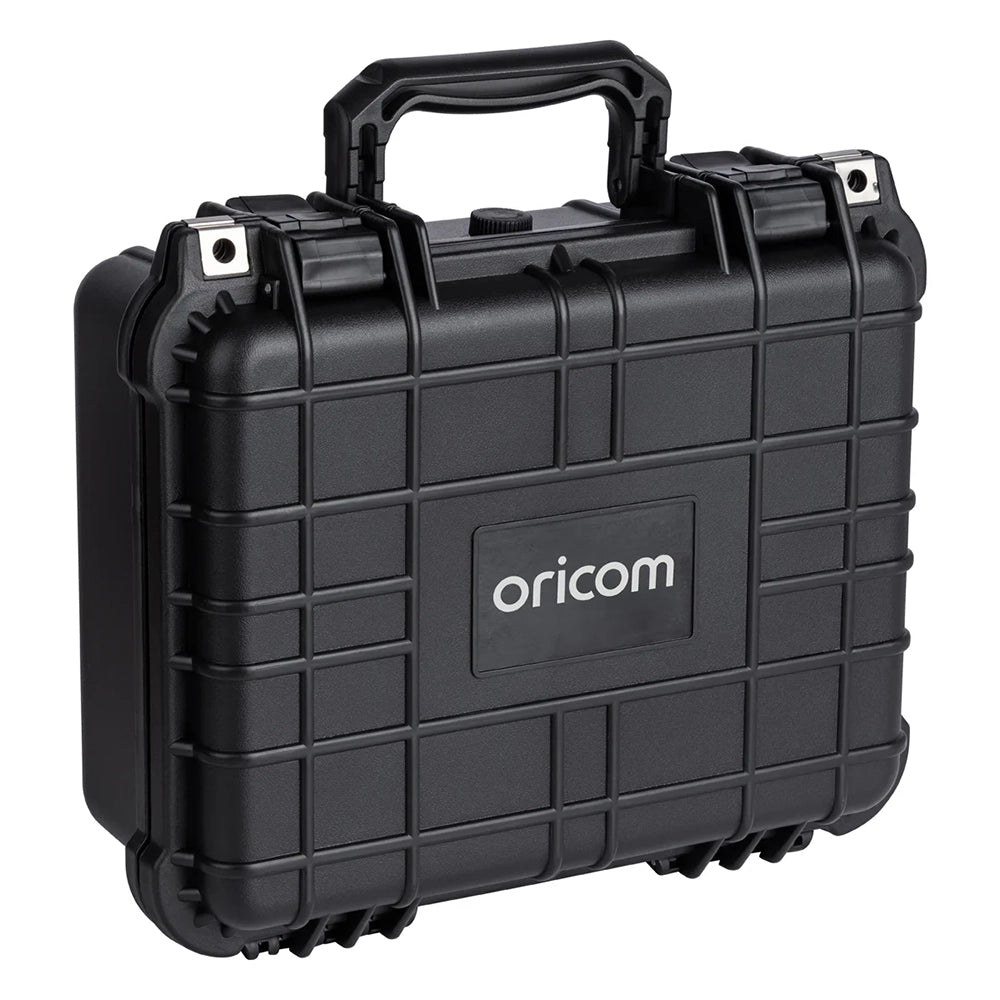

Heavy Duty Carry Case – Convenient storage and portability for the compressor and accessories.
Compatible with Oricom's tyre inflator and deflator.

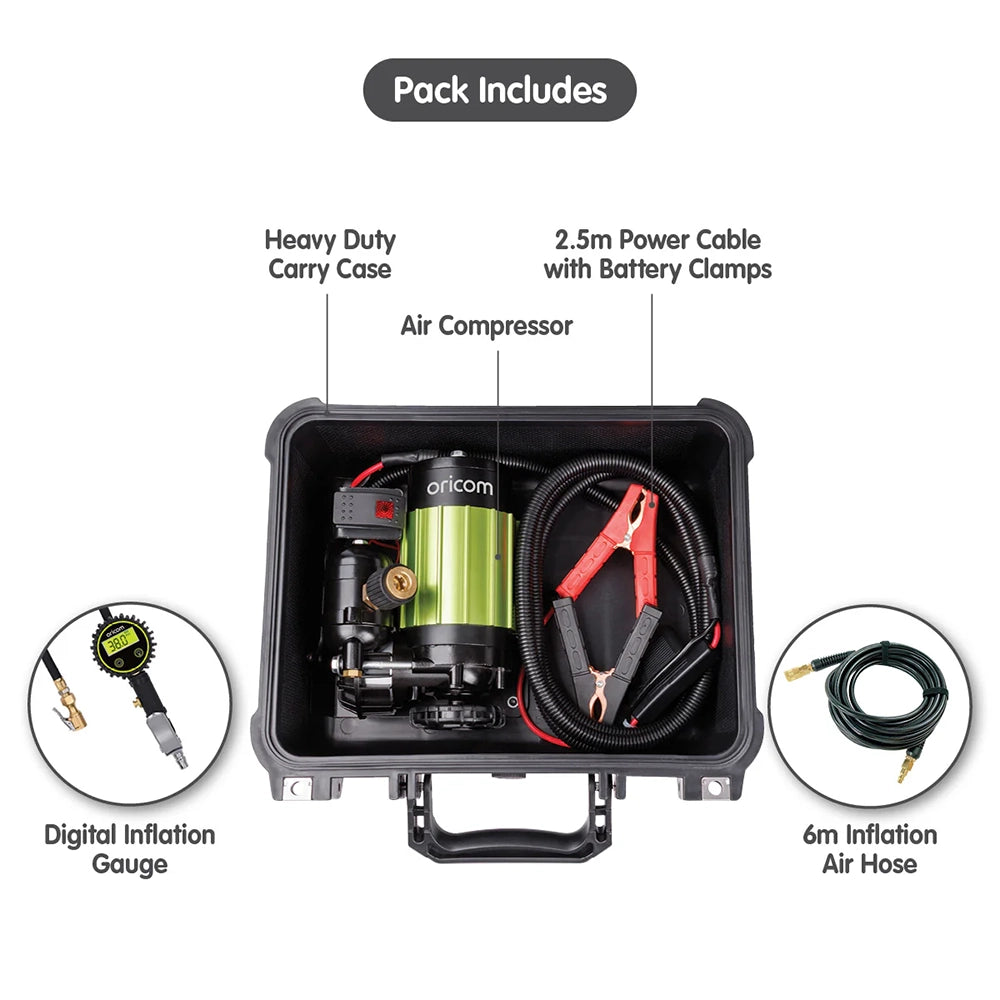

Pack Includes:

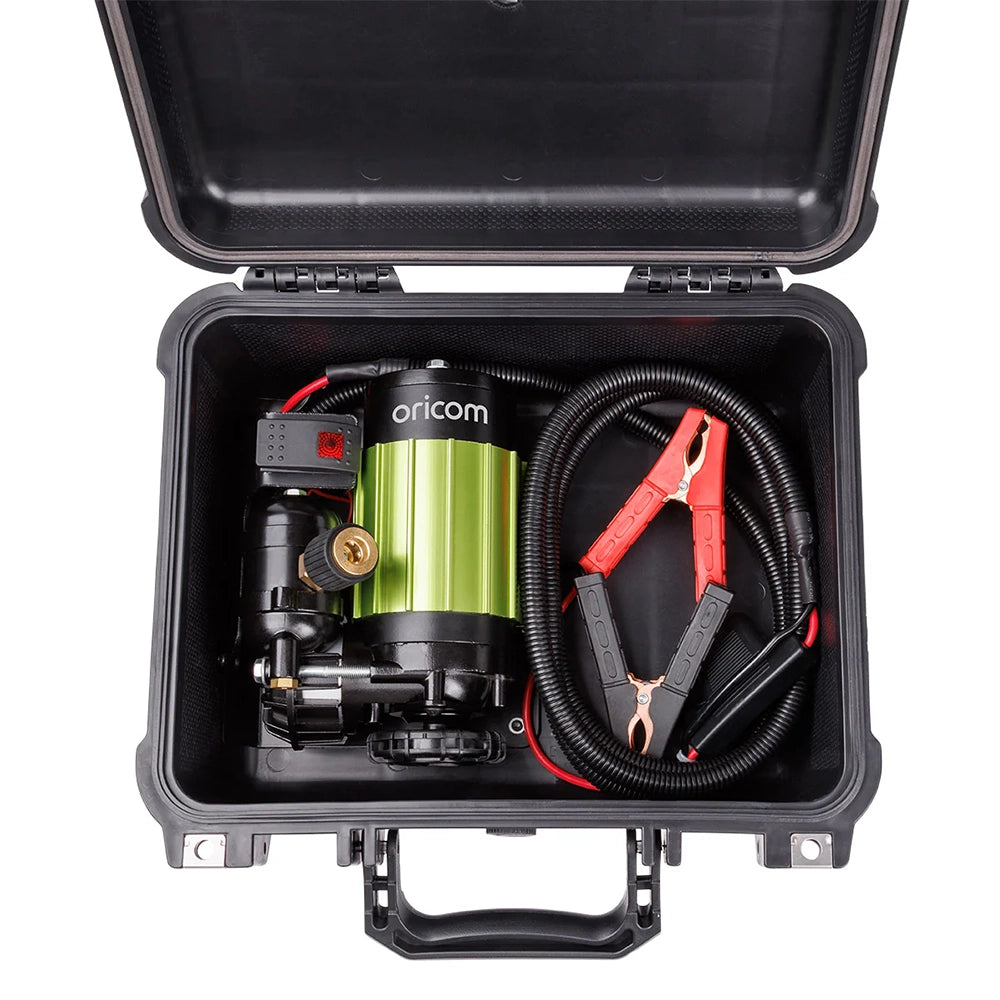

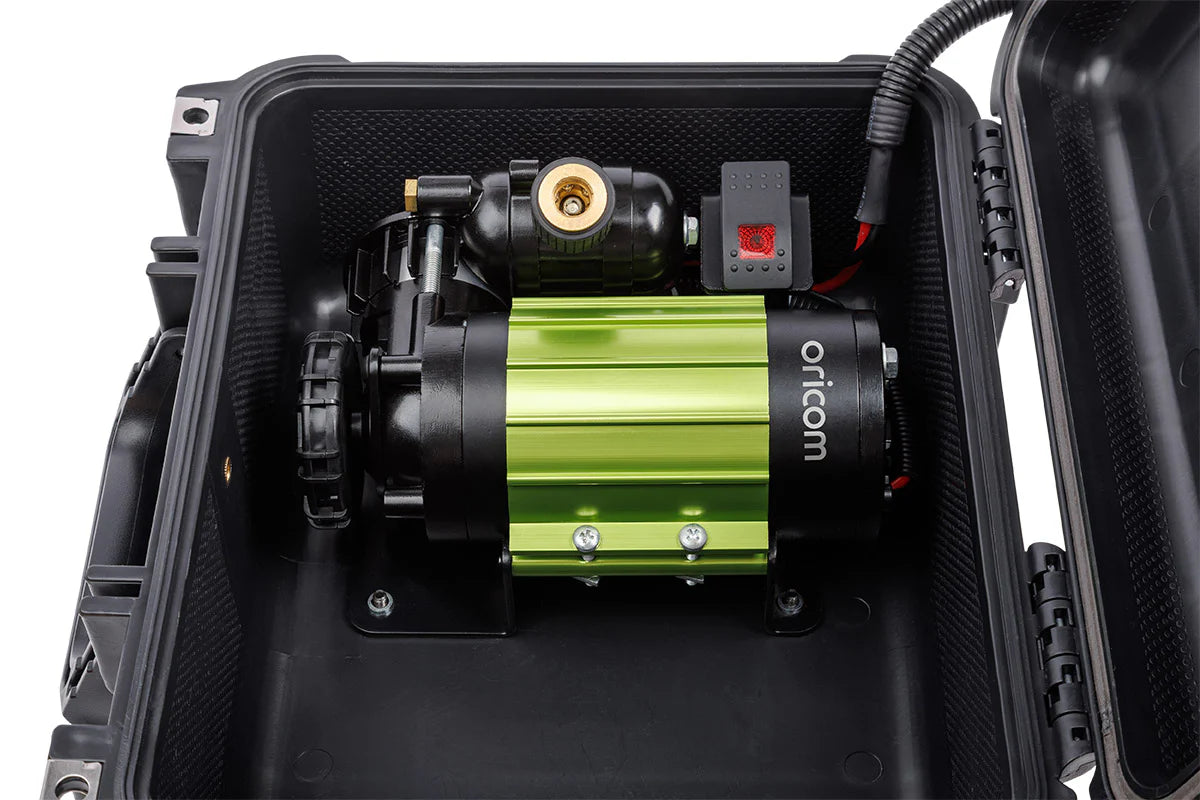

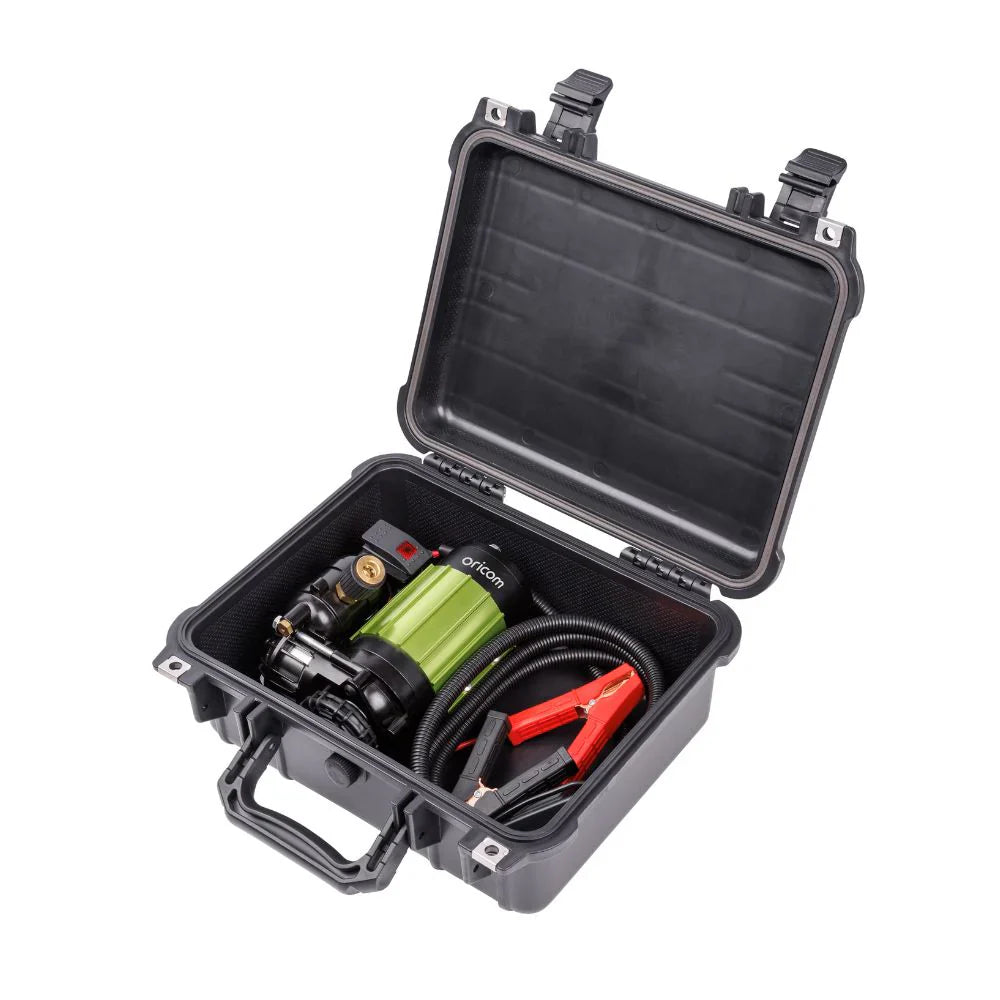

1 x Air Compressor with heavy duty case

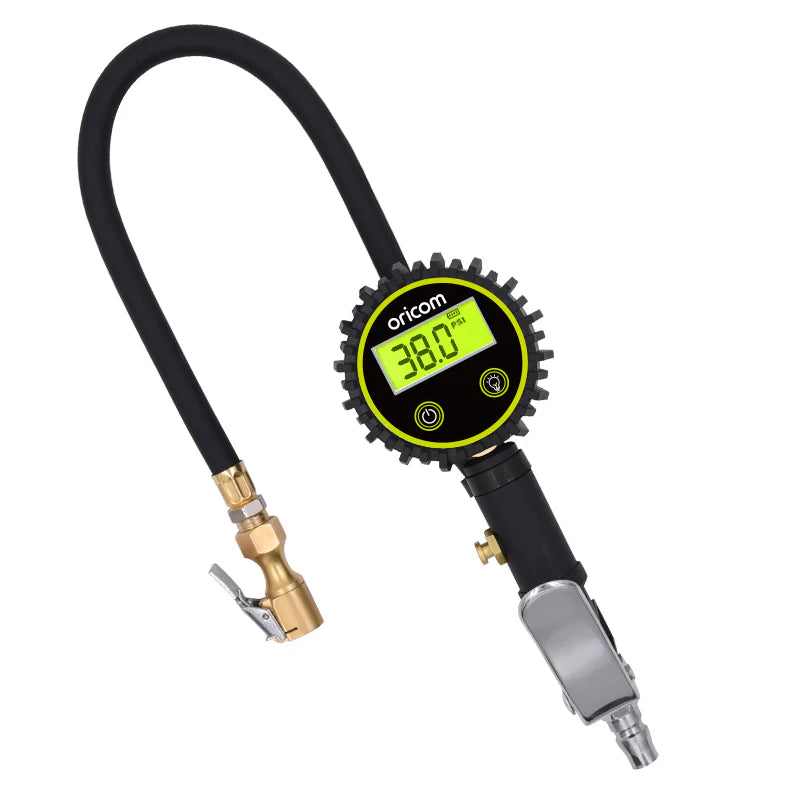

1 x Digital Pressure Gauge with auto shut off

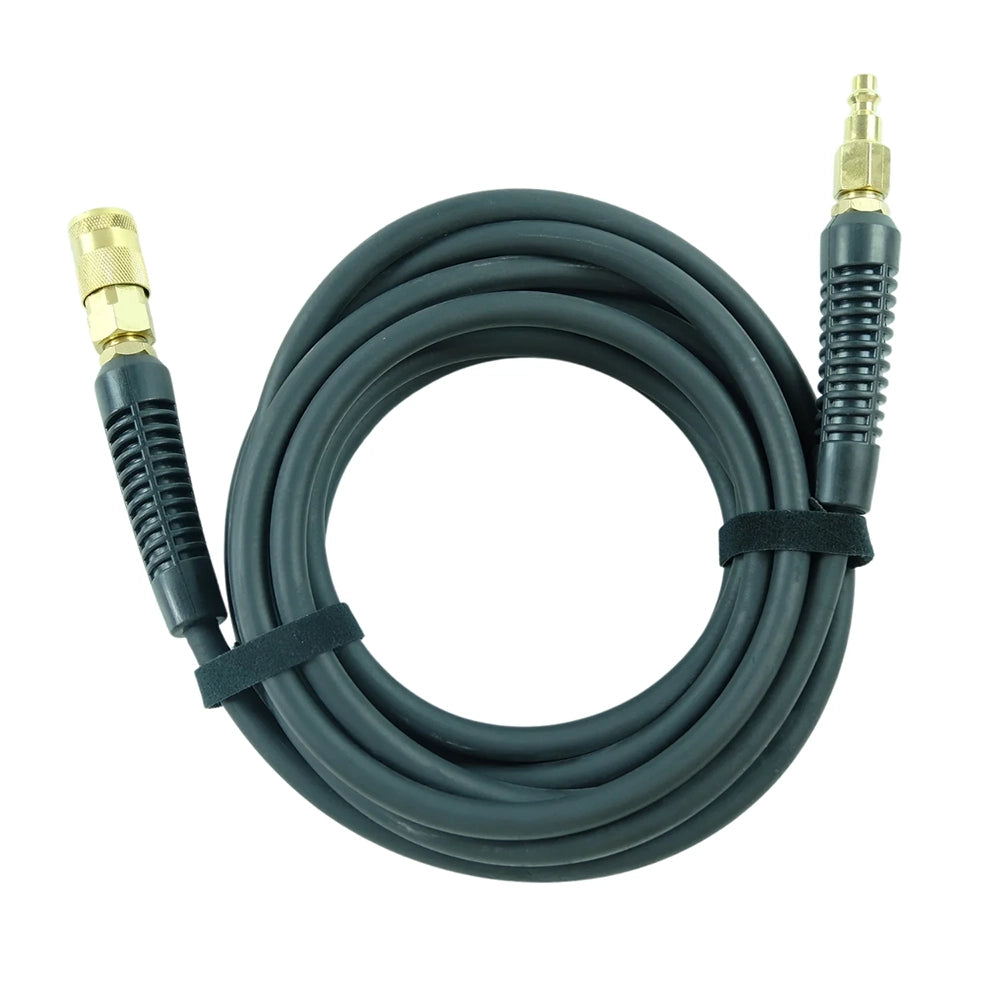

1 x 6m Inflation Hose with ¼" NPT quick connect fitting

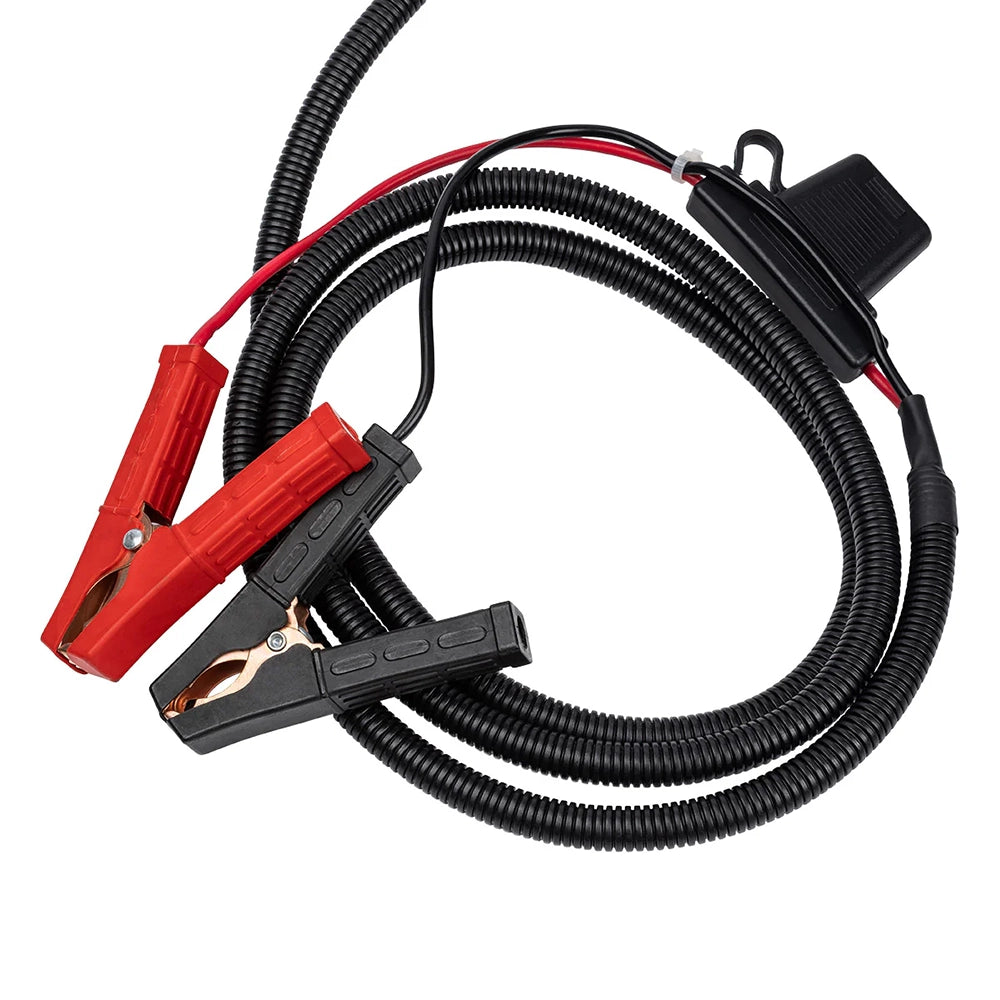

1 x 2.5m Power Cable with battery clamps
Specifications:
Number of Cylinders: 1
Cylinder Diameter (Bore): 44mm
Voltage: 12-13.8VDC
Current Draw Under Load: 32A
Current Draw No Load: 17A

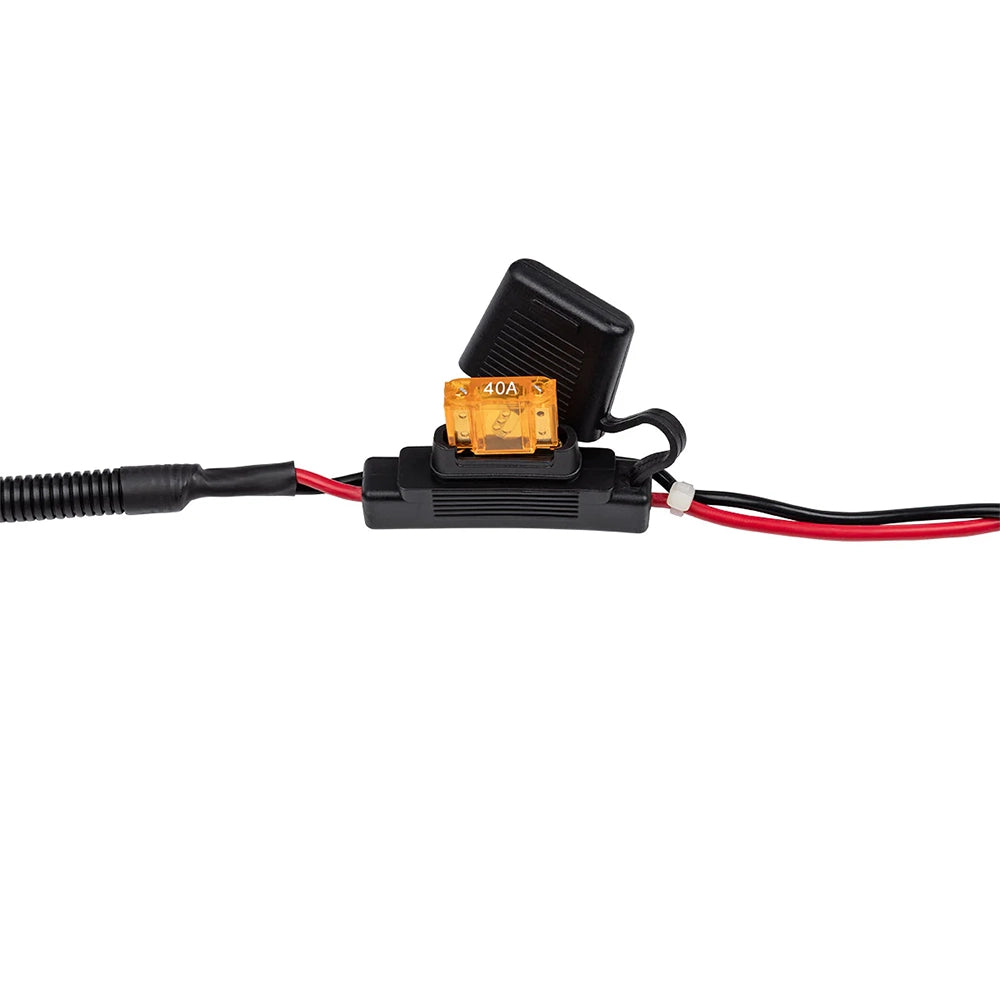

In line Fuse Supplied: 40A
Air Filter: Yes
Max Pressure: 150PSI
Max Working Pressure: 120PSI
Duty Cycle Working 20mins - Rest 40mins
Air Flow Under Load: 42L/min(40PSI)
Air Flow Rates: 75 L/min (0PSI) 50 l/min (29PSI)
Pressure Cutout Switch: 90PSI ON /120PSI OFF
Thermal Protection: Automatically shuts off at 115°C to prevent overheating
Connection to Battery: 2.5m Cable with Battery Clamps
Hose Length: 6m
Hose Connector Type: NPT ¼" Quick Connect
Carry Case: Included
Product Dimensions (cm): 35 x 29.5 x 16
Weight: 7.3kg
Warranty: 3 Years
Tested to meet safety standards: AS/NZS 60335.1:2020-tAl:2021 and EMC compliant with EN/IEC 55014-1:2021
