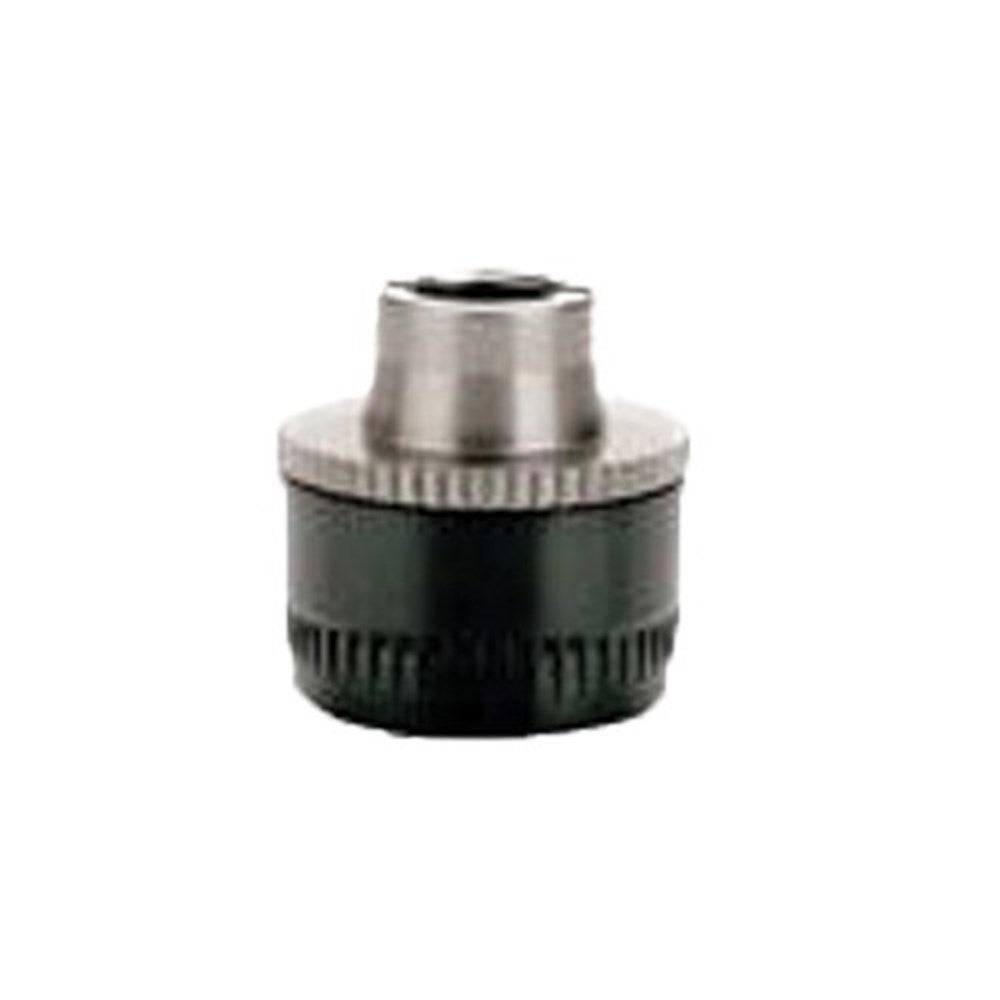

TyreGuard 400 Sensors x1 (Part #1011)
Spare sensor x1 for use with the TYREGUARD 400 Kit (Part No. 1015, 1017 & 1019) which allows you to monitoring the air pressure and temperature of up to 22 tyres with a pressure range of 0 to 145 psi. The sensors must be within 7.6 meters of the monitor however the distance can be extended a futher 8meters with the use of a Booster (Part No. 1020).
|
KIT COMPONENTS
|
| TYRE SENSORS |
1 |
| ANTI-THEFT LOCKING RING KIT (SENSORS) |
1 |
| BATTERY CR1632 (3V LITHIUM) |
1 |
| Tool |
1 |
|
SPECIFICATIONS
|
| SENSOR WORKING TEMPERATURE |
-20C - 85C |
| SENSOR WORKING HUMIDITY |
0 - 95% |
| SENSOR DIMENSIONS |
23 X 21 X 21MM |
| SENSOR WEIGHT |
9G |
| SENSOR BATTERY VOLTAGE |
3v DC (CR1632) |
| PRESSURE MEASURE RANGE |
0 – 145 PSI |
| PRESSURE MEASURE PRECISION |
±4.35 PSI |
| TEMPERATURE MEASURE RANGE |
- 20C - 85C |
| TEMPERATURE MEASURE PRECISION |
±3C |
| MONITOR WORKING VOLTAGE |
3V DC |
| SIGNAL TRANSMITTING FREQUENCY |
433.92 MHz |
TPMS Sensor Protective Tip
To help protect your vehicle’s Sensors and caps from stone damage & tapping on the wheel rim which may fracture the Sensor battery cradles, a piece of ½” heater hose fits snugly over the cap and valve stem with the small amount of the cap protruding. This is a very economical and successful option to place on all Sensors, shown below:
