A Davies Craig Thermatic® Electric Fan is suitable for condenser and radiator cooling. All Davies Craig Thermatic® Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).

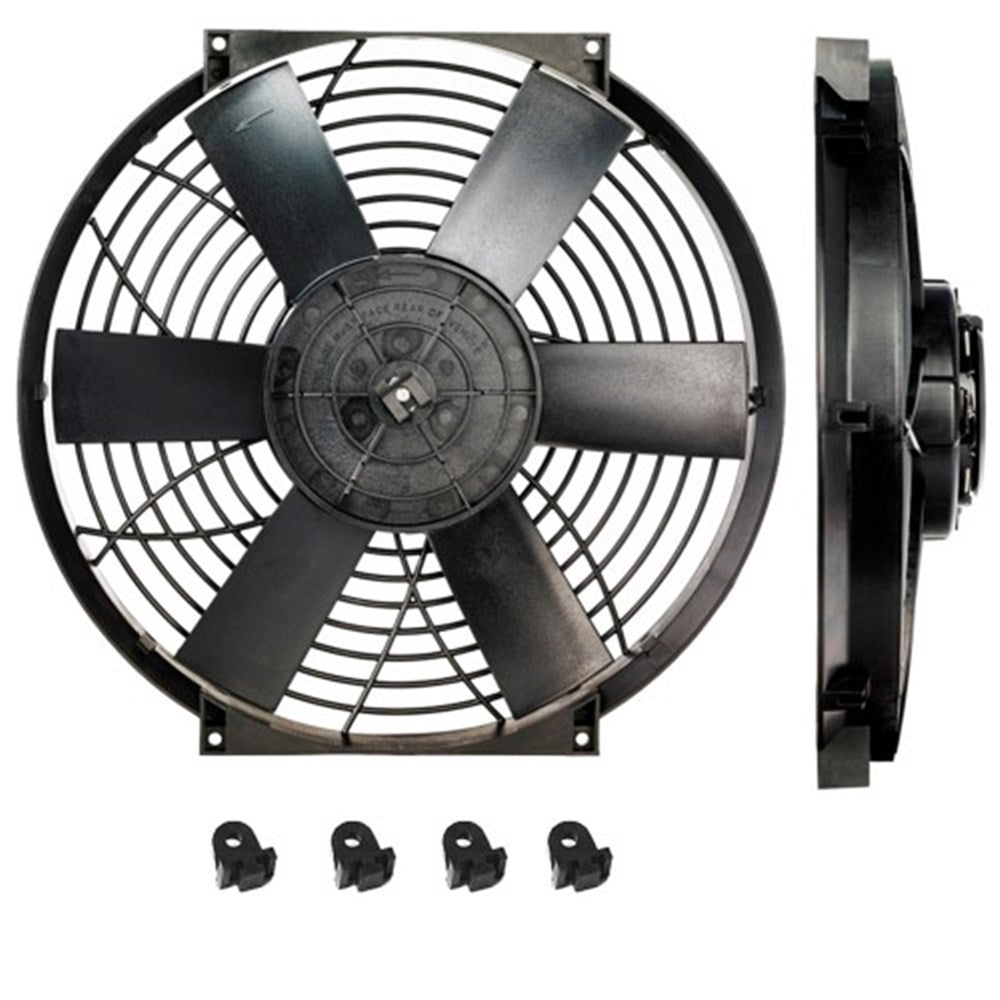

16" THERMATIC® Electric FAN (12V) (PART #0166)
All Davies Craig Thermatic® Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet) and are available with a Brushed or Long Life Brushless Motor.
Thermatic® Electric Fans are suitable for use as:
- Radiator cooling fans
- Air conditioner condenser Fans
- Transmission and engine Oil cooler fans
It provides, constant or variable air flow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.
These fan assemblies are set up for upstream / pusher applications from the factory.
For downstream applications, the fan blade must be removed and turned over and the wiring adjusted as per the instructions. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.
| SPECIFICATIONS |
|
COMPONENTS |
| Airflow |
2120 CFM (ft3/min) |
|
Units |
DESCRIPTION |
| Maximum current |
19.0A (12 Volt)
9.5A (24 Volt)
|
|
1 |
16" Thermatic® Electric Fan
(12V)
|
| Weight |
3 kg (6.6 lb) |
|

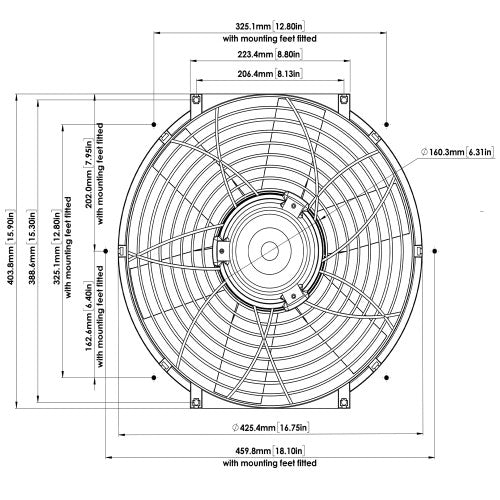

| Dimensions |
Height = 400mm
Width= 424mm
Depth = 97mm
|
|
4 |
Mounting feet |
