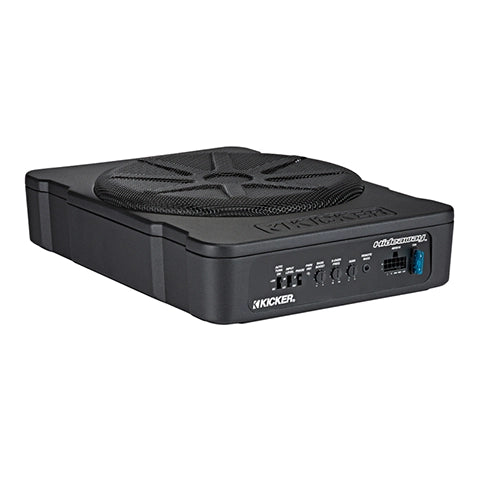

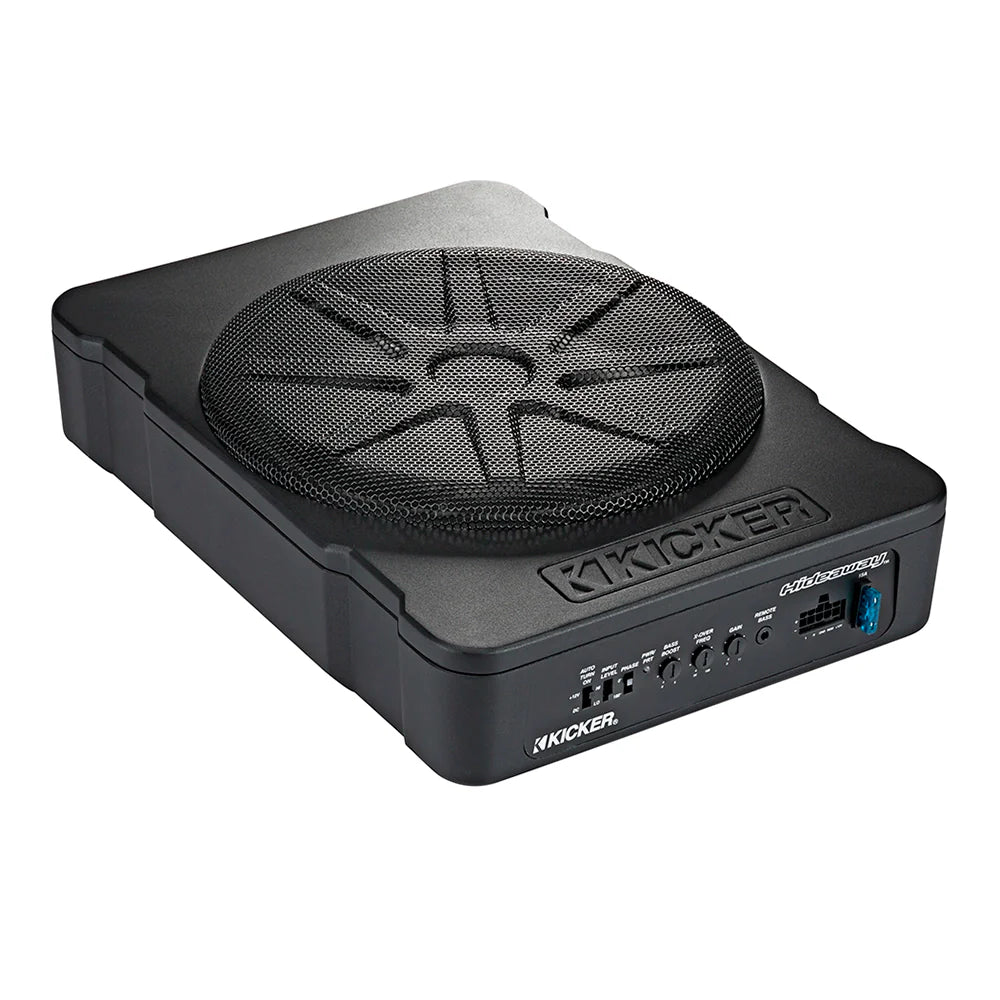

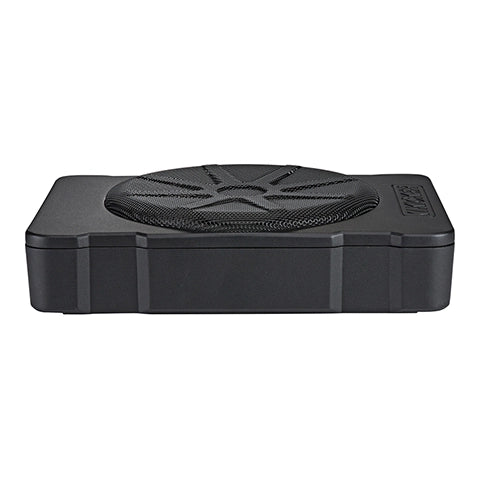

The Hideaway HS10 is a compact powered 10-inch subwoofer that delivers surprising low frequency impact in a tough, all-aluminum frame.
FIT PLUS
KICKER innovates once again, with FIT+™ (Fail-safe Integration Technology PLUS). Accepting input signals ranging from a mere 0.25 volt to as high as 40 volts (400 watts at 4Ω) and fully compatible with newer vehicles using start/stop systems, the HS10 works with almost any vehicle on the road today without the added expense of a line output converter.
ROCKIN’ REMOTE
The included remote control allows you to change the amount of bass without changing the radio volume, for the perfect mixture of bass in your music at any volume.
FULLY LOADED
The Hideaway comes with an adjustable low-pass crossover, variable +6dB bass boost, phase switch, and two auto turn-on options: DC-offset or signal sensing.
FANTASTIC FIT
A mere two millimeters taller than its little brother the HS8, the HS10 delivers more power and a bigger impact in an all-aluminum frame.
EASY INSTALL
The quick-connect Molex® plug and harness includes power, signal and remote turn-on. It also features high- and low-level inputs for integration with nearly any factory or aftermarket head unit, plus two automatic turn-on options for incredibly easy activation.
Specifications:
Subwoofer (in, cm)
10, 25
RMS power (watts), 180
150
Frequency response (Hz)
25-120
Crossover
12dB/octave Lowpass 50–120Hz;
24dB/octave Highpass @ 25Hz
Phase switch
0°/180°
Input sensitivity:
Low level – 250mV-10V
High level – 1V-40V
KickEQ boost
variable to +6dB @ 40Hz
Remote bass
included
Box Depth (in, cm)
12-3/8, 31.4
Box Height (in, cm)
3-1/8, 8.1
Box Width (in, cm)
9-7/8, 24.9
Weight (lbs, kg)
11.4, 5.17
